2x1 HDMI Switch SW201PM

更新:2016-01-04 11:35:37      点击:
  • 品牌:   COAS
  • 型号:   SW201PM
  • 在线订购
产品介绍

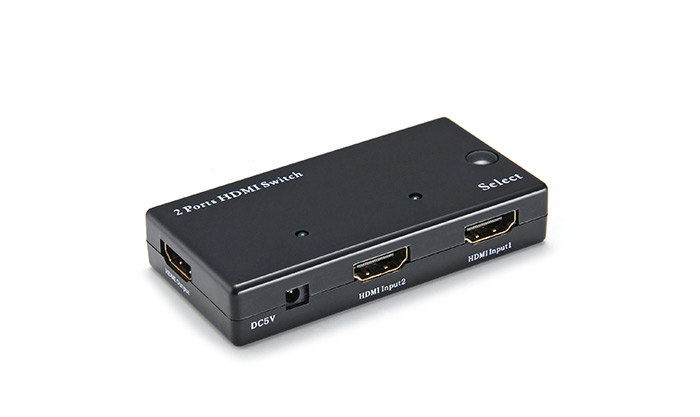

       HDMI Switch 2x1

Model No. SW201PM

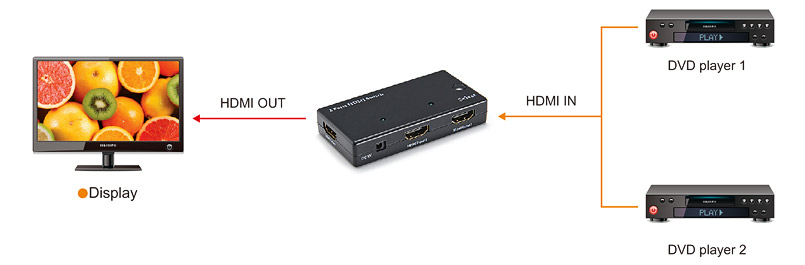

2 HDTV HDMI devices to be switched easily into one HDTV HDMI compatible monitor or projector.
Full HD 1080P/120Hz/60Hz
3D and 4K*2K support

Support X.V. Colour
Supports DTS/Dolby/DTS-HD/Dolby True HD/LPCM7.1/AC3


SPECIFICATION

Input Port   :                       2xHDMI(Female connector),

Output Port :                       1xHDMI(Female connector),

Input lead Max Length :        for 4K — 7M , for 1080P — 20M
Output Lead Max Length :     for 4K — 7M , for 1080P — 15M
Bandwidth :                          10.2Gbps
Output Resolution :               3840 x 2160@50/60, 480i — 1080P@ 50/60
                                             1080P@24/50/60 , VGA -UXGA
Operating Temp :                 -15°C~55°C/5°F~131°F



Deep Color :                        36bit
Housing :                              ABS
Dimensions :                         mm(L)x mm(W)x mm(H)
Weight :                                g
Power Supply Input :             100 -240V — 50/60 MHz ,0.3A max
Power Supply Output :           DC 5V —— 2000mA


PACKAGE CONTENTS

•1 x HDMI switch unit
•1 x Remote
•1 x 5V power adapter

 •1 x User Manual


FEATURES

•HDMI, HDCP 2.0 and DVI compliant

•Support full 3D pass-through

 •Support 4k x 2k high resolution

•Support CEC bypass
•External and internal EDID settings

.Dedicated LED indicator lights
