3x6 IR Hubs
- 品牌： COAS
- 型号： IR306

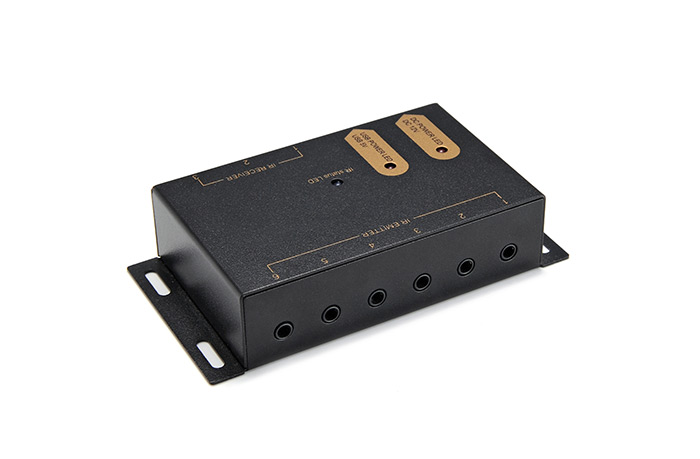

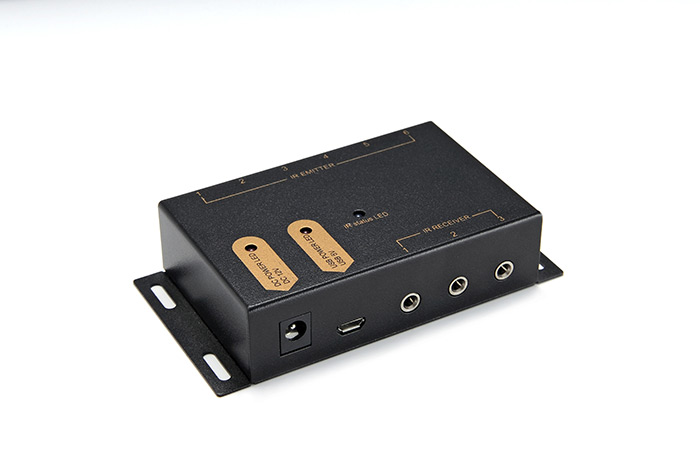

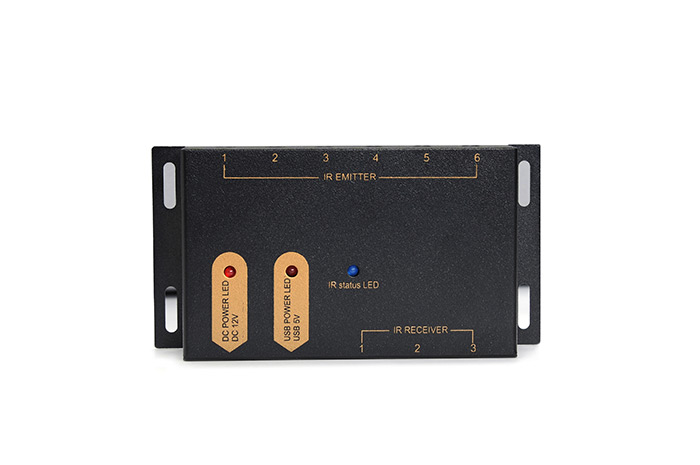

3x6 IR Hubs
Model No. IR306
This Premium IR Repeater System Kit allows you to control A/V equipment with your existing IR remote controller, such as amplifier, cable box, stereo receiver, Satellite TV receiver, CD player, DVD player, Blu-ray player, Etc.
Features
1.Allows IR remote control of up to 12 Devices even behind closed cabinet doors.
2.Use your existing remote control.
3.Only one small IR receiver needs be visible on or near the TV to control all devices
4.IR Receiver input jack.1/8’’(3.5mm).
5.12VDC powered(Can be USB powered with optional USB cable).
6.IR Confirmation LED.
7.Power LED.
8.Status Confirmation LED.
9.Quick Mount.
Specifications
The IR306 Includes:
1xDistribution Block,1xSurface Mount Receiver, 2xIR Emitter (optional ), 1x12VDC, 200ma power supply, 2xMounting Screws.
6 Ports.1/8’’(3.5mm) mono IR Emitter outputs
1 Detachable,4-conductor,IR Receiver In connector
2 1/8’’(3.5mm Stereo Jack) IR Receiver Input
Dimensions:IR Receiver:
Dimensions:Distribution Block 109mm x 56mm x 25.4mm
Block Weight :7 g.
DUAL BAND MINI STICK INFRARED RECEIVER
Features
1. CFL friendly-allows installations in areas with compact fluorescent lighting. Works in most lighting environments.
2. Blue IR confirmation LED.
3. Wide band IR receives IR from many types of remotes.
4. Self-adhesive tape for quick and easy fixing on any flat surface.
5. 3 meters cable with 3.5mm stereo mini-plug.
Specifications
Receive Frequency Range...........................................36 KHz to 58 KHz
Transmit Frequencies...................................................38 KHz & 56 KHz
Range……………………………………………………….............20M @ 38KHz
.. ……………………………………………………………….............6M. @ 56KHz
Power.........................................................................12VDC,200mA
Dimensions…………………………………………………..............R 20mm
Cord Length.................................................................10ft(3m)
Connector Type..........................................................1/8”(3.5mm)TRS mini plug
Weight.................................................................................................g
A. Standard installation
1. IR emitter attached directly to IR sensor window.
2. More reliable activated.
B. Attach emitter at inside of shelf
1. Attach emitter on above or below of the IR sensor.
2, Less reliable activated.
-
Attach emitter on door,round shape facing the IR sensor.
-
Less reliable activated.
