mini 1x8 HDMI splitter SP108M

Update: 2018/2/6      View:
  • Brand:    COAS
  • Type:    SP108M
  • Order Online
Introduction

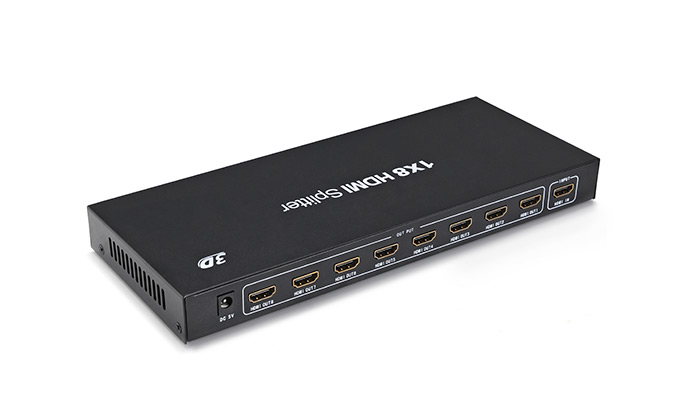

     HDMI Splitter 1x8

Model No. SP108M

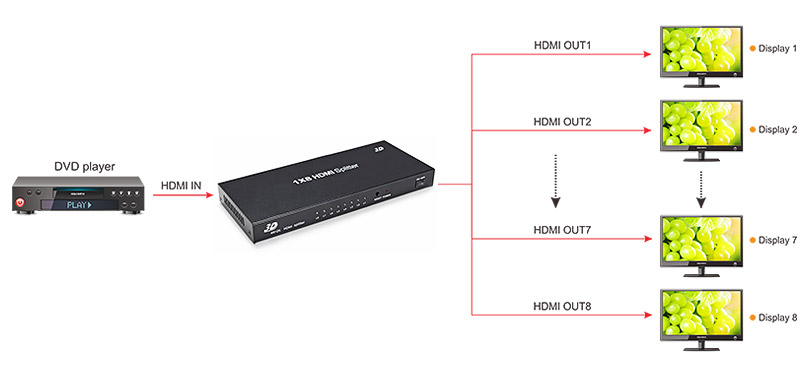

1HDMI High Speed input signal split to 8 HDMI High Speed sink devices

HDCP2.0 compliant

3D and 4K*2K support




Input Port :                             1x HDMI (Female connector )

Out  port :                              8 x HDMI ( Female connector )

Input lead Max Length :           for 4K — 7M , for 1080P — 20M
Output Lead Max Length :        for 4K — 7M , for 1080P — 15M
Bandwidth :                            10.2Gbps /340MHz
Output Resolution :                 3840 x 2160@50/60, 480i — 1080P@ 50/60
                                             1080P@24/50/60 , VGA -UXGA
Operating Temp :                     -15°C~55°C/5°F~131°F



Deep Color :                            36bit
Housing :                                Metal
Dimensions :                           105mm ( L ) x 76MM (W ) x 26mm(H)
Weight :                                  1020g
Power Supply Input :                100 -240V — 50/60 MHz ,0.3A max
Power Supply Output :              DC 5V —— 2000mA

.Allows you to cascade 8 or more splitters

.Can be used to create a larger distribution of HDMI signals

.Supports HDMI specifications - (Deep color, HD lossless audio formats, and Lip Sync)

.Supports Dolby Digital, DTS-HD, and Dolby True HD audio formats

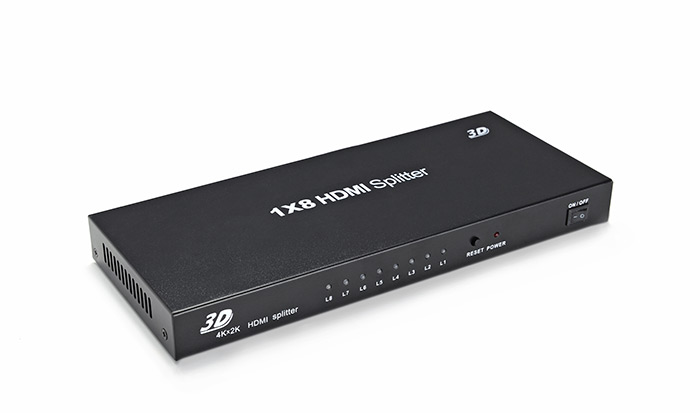

.Front panel LED indicators

.Gives an indication of the presence of input/output signals

.CEC pass through

.External and internal EDID settings
