1x4 HDMI splitter SP104B

Update: 2018/2/6      View:
  • Brand:    COAS
  • Type:    SP104B
  • Order Online
Introduction

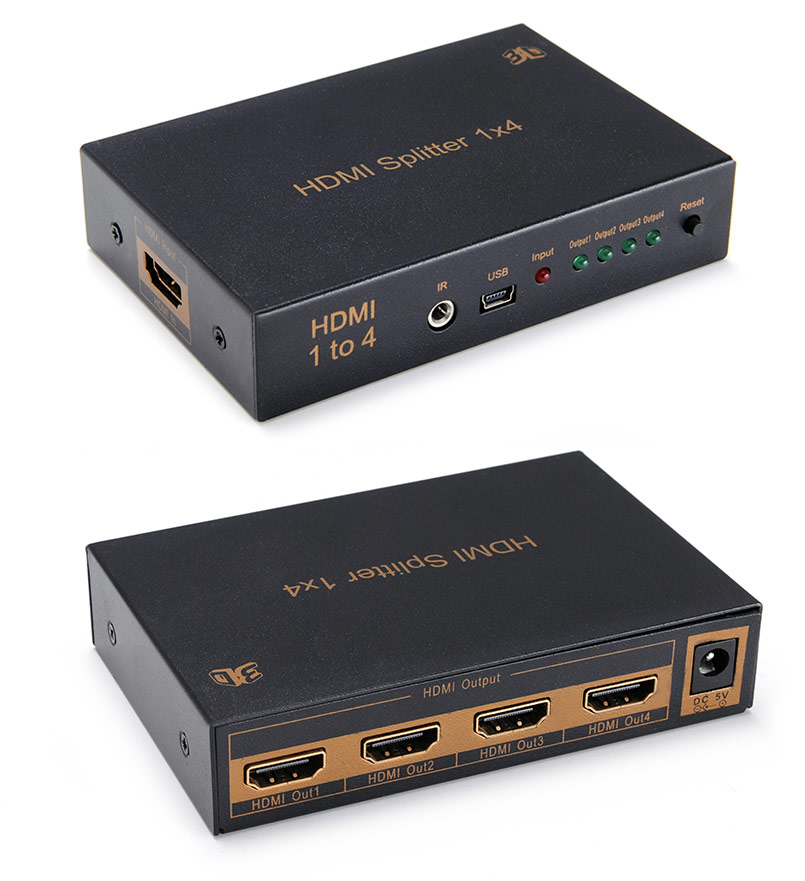

         HDMI Splitter 1x4 with IR


Model No. SP104B

1HDMI High Speed input signal split to 4 HDMI High Speed sink devices

HDCP2.0 compliant

3D and 4K*2K support

Bi-direcional IR control system
Receiver Range : 20 meter
Emitter Range :    6 meter

IR cable can be up to 300 meter



Input Port :                            1 x HDMI (Female connector ), 1 x USB (micro Female for power )

Out  port :                              4 x HDMI ( Female connector )
                                               1 x IR channel

Input lead Max Length :       for 4K — 7M , for 1080P — 20M
Output Lead Max Length :   for 4K — 7M , for 1080P — 15M
Bandwidth :                          10.2Gbps / 340MHz
Output Resolution :             3840 x 2160@50/60, 480i — 1080P@ 50/60
                                               1080P@24/50/60 , VGA -UXGA
Operating Temp :                  -15°C~55°C/5°F~131°F
Deep Color :                          36bit
Housing :                               Metal
Dimensions :                         105mm(L) x 76mm(W) x 26 mm(H)
Weight :                                 185g
Power Supply Input :            100 -240V — 50/60 MHz ,0.3A max
Power Supply Output :         DC 5V —— 2000mA


.Allows you to cascade 4 or more splitters

.Can be used to create a larger distribution of HDMI signals

.Supports HDMI specifications - (Deep color, HD lossless audio formats, and Lip Sync)

.Supports Dolby Digital, DTS-HD, and Dolby True HD audio formats

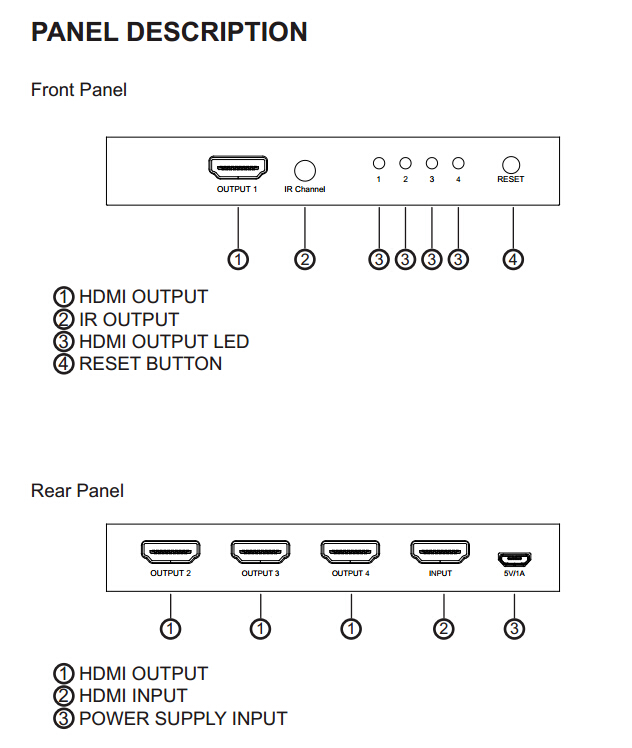

.Front panel LED indicators

.Gives an indication of the presence of input/output signals

• Super IR control system, IR transport channel can be forward or backward per your installation

.CEC pass through

.External and internal EDID settings

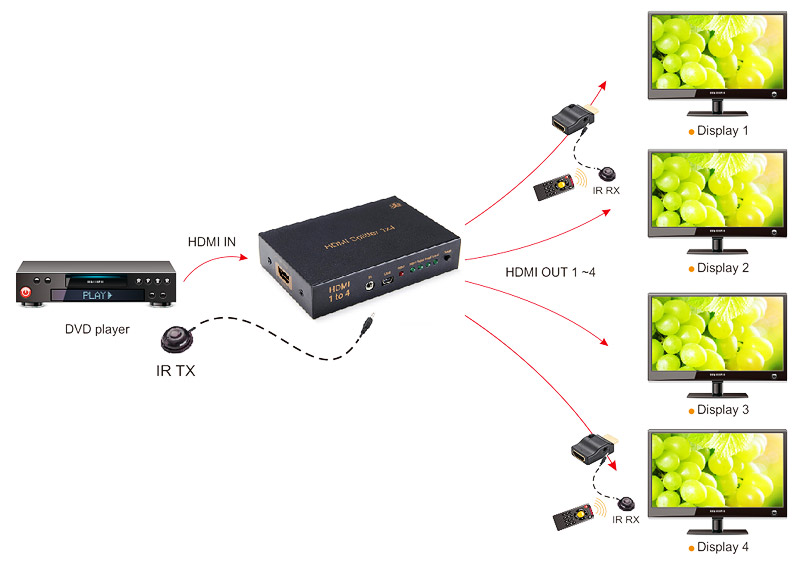

Source device IR control:

•Connect the IR port with a Transmitter TX cable included in the package if needed ) for IR signal transmission. Place the IR Blaster in direct line-of-sight of the equipment to be controlled.


•Connect a IR Receiver RX cable ( included in the package if needed ) at the HDMI input of the HD Display for IR signal reception.

HDMI IR Injector adaptor ( Model No. AD001 ) is needed for this connection. Make sure that the remote being used is in direct line-of-sight of the IR receiver.
