HDMI Smartbox

Model No. HDSM01

SPLITTER + SWITCH + MATRIX = SMARTBOX

   PRODUCT SIDE

Input and output of the new concept
Each port is either input or output

Simple to use
Automatically identify the input or output signal sources

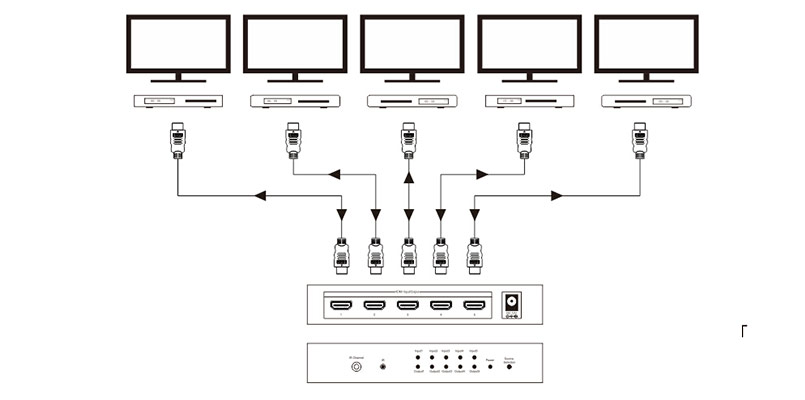

It can be 4 inputs 1 output , 3 inputs 2 outputs or other

It can cascade 5 or more splitters .

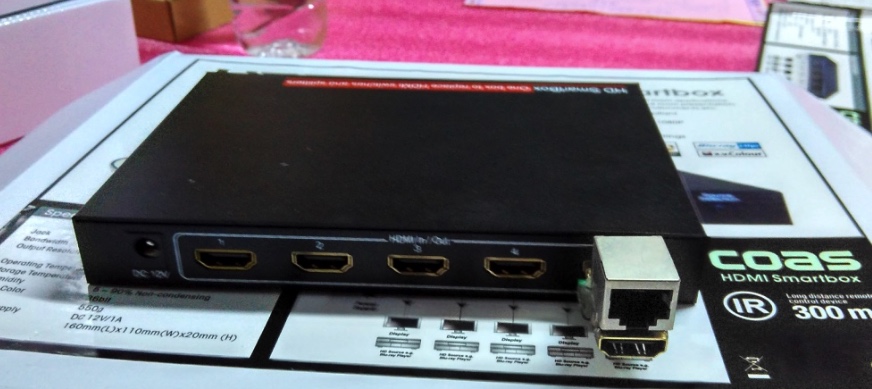

The 5th port can be cascaded with COAS special 1x2 HDMI adapter .
This adapter either can be 2 HDMI ports , or can has one HDMI port and one Cat5e/6 port .

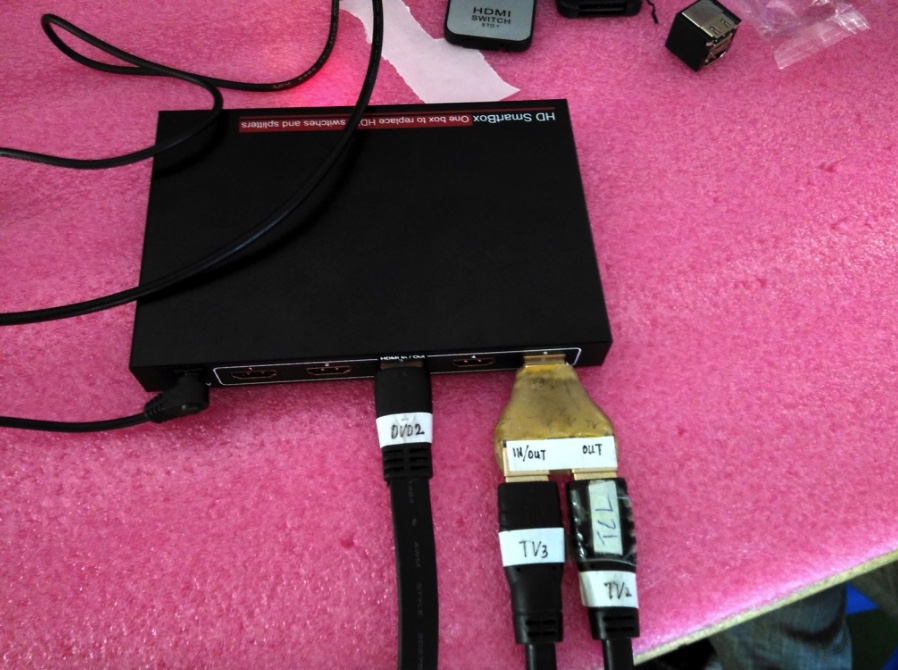

If two both are HDMI port , one of the port can be input and output at the same time , the other one is just output .
If one HDMI , and another RJ45 port , you can connect he Cat5e/6 cable can be up to 30M .



This innovative HD Smartbox offers a simple solution to replace all HDMI splitters and switches you are using. It can distribute HDMI signal bi-directionaly as each interface on the unit combines input and output function. You only need to run one HDMI cable instead of two as other devices for installation, the input and output signal can pass through bi-directionally through this cable without any signal loss. This enables you a clean and tidy set up with less money.

The HD Smartbox is ideal for multi room applications such as home theater, conference room presentation, school and corporate training environments etc.

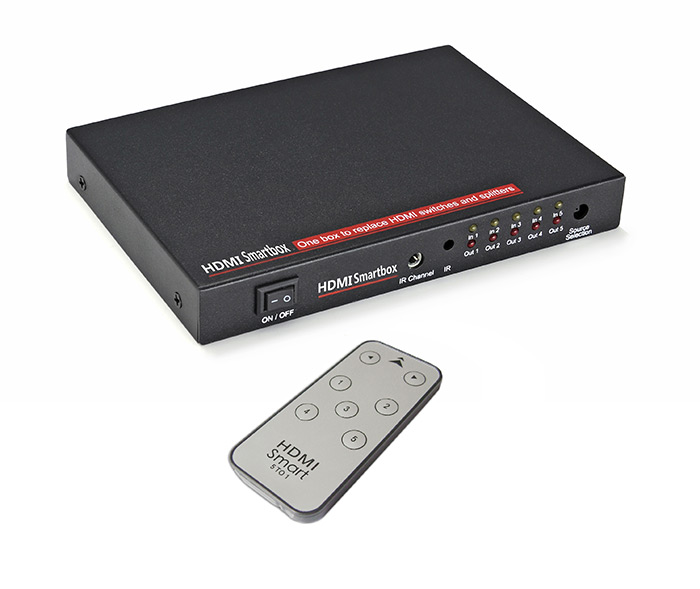

Bi-direcional  coas IR control system
Receiver Range : 20 meter
Emitter Range :    6 meter
IR cable can be up to 300 meter

FEATURES

•HDMI, HDCP 2.0 and DVI compliant

•Support full 3D pass-through

•Support high resolution up to 1080P
 •Super IR control system
•Support CEC bypass
•External and internal EDID settings

SPECIFICATION

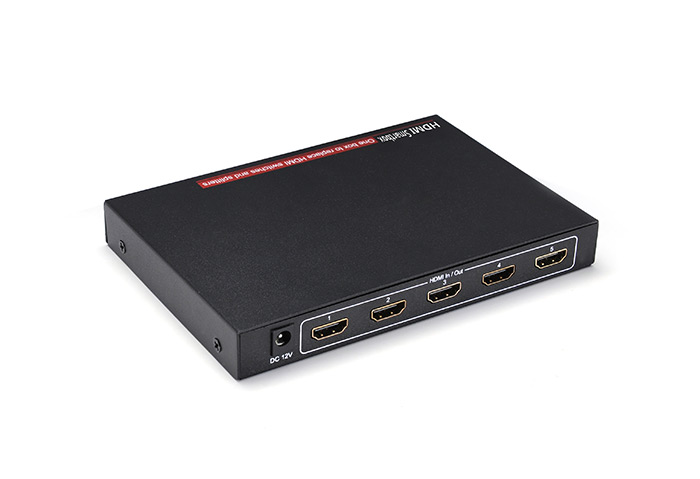

Jack                                                                 5 x HDMI Female port, 1xIR Channel
Bandwidth                                                        10.2Gbps

Output Resolution                                           480i~1080P@50/60,1080P@24/50/60, VGA~UXGA

Operating Temperature                                    -15°C~55°C
Deep Color                                                        36bit
Housing                                                             Metal
Output cable distance                                       <&= 15m under 24AWG
Intput cable distance                                         <&= 15m under 24AWG
Dimension                                                       160mm(L) x 110mm(W) x 20mm(H)
Weigh                                                                550g

Power Supply                                                      DC 12V/1A
