8x8C 50M HDMI Matrix Extender

Update: 2024/12/2 View:

Brand: COAS
Type: HD808CF

Introduction

HDMI Matrix extender

Model No .HD808CF

FEATURE

any 8 HDMI input signal split to any 8 outputs for 8-supplied receivers

Support 50m for HDMI signal

The receiver is 8 sets of Cat5e/6 - RX ( two RJ45 sockets with IR ) HDMI device

Bi-direcional coas IR control system

Receiver Range : 20 meter

Emitter Range : 6 meter

IR cable can be up to 300 meter

SPECIFICATION

HDMI version 4K x 2K

HDCP 1.3

Bandwidth 6.75Gbps - 10.2Gbps

Output Resolution 3840 x 2160@50/60, 480i — 1080P@ 50/60

1080P@24/50/60 , VGA -UXGA

Operating Temperature -15°C~55°C/5°F~131°F

Deep Color deep color 24bit/36bit

Audio Format PLCM /Dolby -AC3/DTS7.1 / DSD

Housing Metal

Output cable distance <&= 20m

Intput cable distance <&= 20m

Dimension 442mm(L)x204mm(W)x47mm(H)

Weight g

Power Supply DC 12V /4A

OPERATION :

1, Connect the signal source ( such as HD-DVD, PS3 , STB ) with HDMI input interfaces .

2, Connect the display devices ( such as HD-LCD , HD-DLP) with HDMI output interfaces .

3, This device is powered by an external power supply ( included ) .

Package included :

1 x HDMI matrix over UTP

4 x 50m HDMI over 2 x Cat5e/6 extenders RECEIVERS with IR

1 x12V / 10A DC power adapters

4 x 5V/2A DC power adapters

1x remote control

1x user manual

8 x IR TX + 8 x IR RX if needed

Included in the system are an HDMI splitter, eight receivers, eight IR transmitters & receivers, and eight 5 V DC power supply adapters.

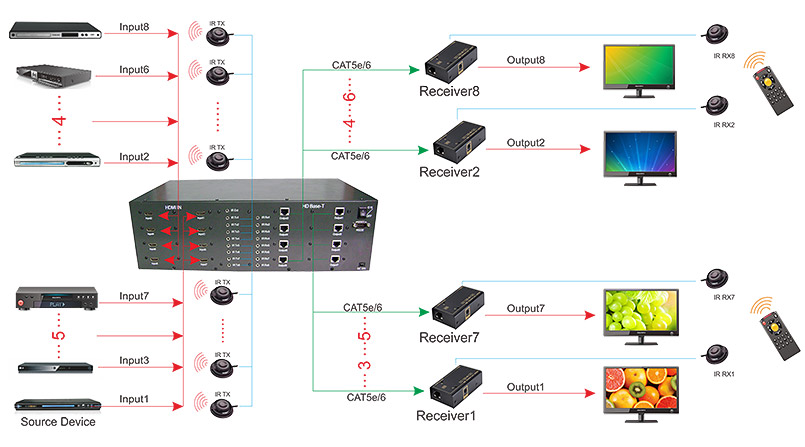

8 x HDMI source devices matrix switched to 8 x Cat5e/6 Extender output devices

.50M transmission over Cat 6 at 4K x 2K

.UTP Cat 5e/6 to up to 4 compatible displays

.Compliant with HDMI 1.4, HDCP 1.3

.HDMI local loop out

.Operates for TMDS clock frequencies up to 165 MHz

.Supports resolutions up to 3840 x 2160 /36-bit/48-bit

.Supports LPCM 7.1/AC3, Dolby True HD, and DTS-HD master audio

.Super IR & RS 232 control system , IR transport channel can be forward or backward per your installation

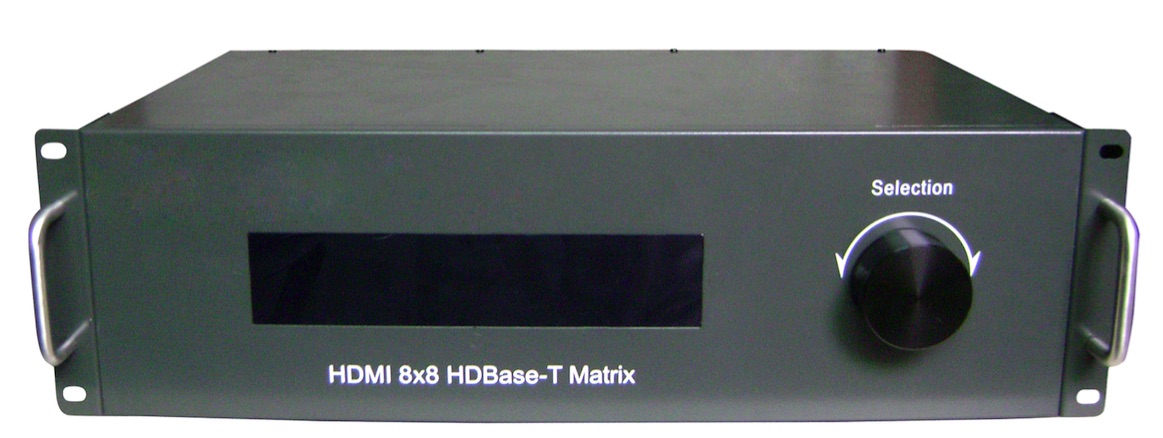

.Front-panel LEDs for input signal presence

.Front -panel LEDs digital display

.CEC Pass through

. External and internal EDID settings

.Bi-directional IR control
