HDBase-T HDMI extender 100M

Update: 2024/12/2 View:

Brand: COAS
Type: HDET100

Introduction

HDBase-T HDMI extender 100M

Model No. HDET100

This HDMI HDBase-T extender uses single Cat5e/6/7 cable to extend 3D TV over 100M away from the source .

It supports resolutions up to 4K x 2K full HD and high bit -rate audio formats such as Dolby Ture -HD and DTS-HD Master Audio .

Suport IR control system . IR transport channel can be forward of backward , IR blaster and receiver pigtails are needed .

By using standard Cat6 cable , it makes HDMI signal extension easier to install within a room or through walls . The extender’s digital transmission uncompressed \method insures 100% signal integrity .

SPECIFICATION

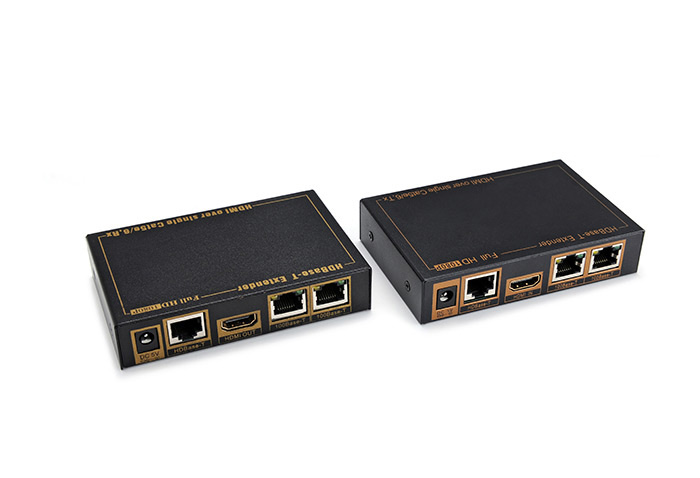

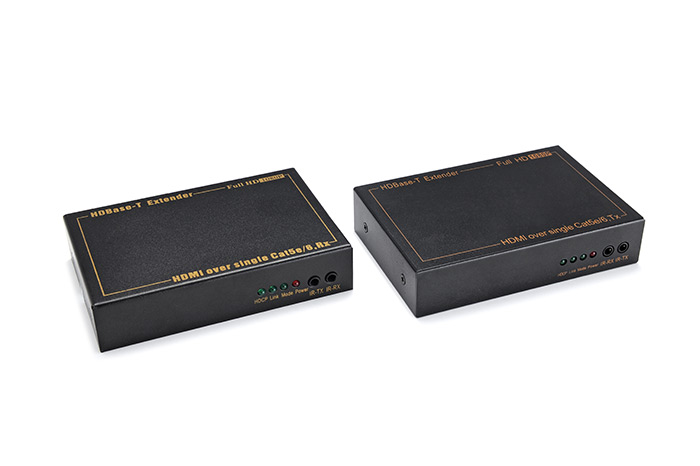

Transmitter: 1 HDMI input + 1 IR RX port + 1 IR TX port TO 1 x HDBase-T RJ45 socket ＋2 RJ45 for internet

Receiver : 1 x HDBase-T RJ45 socket + 2 RJ45 for internet TO 1 HDMI output + 1 IR RX port + 1 IR TX port

Transmitter and receiver are connected via one Cat5e or Cat6 cable up to 100M long with HDBase-T technology .

Transmitter auto convers HDMI to Cat5e TMDS signal

Bandwidth : 6.75Gbps

Output Resolution : 3840 x 2160@50/60, 480i — 1080P@ 50/60

1080P@24/50/60 , VGA -UXGA (1920 x 1200 )

Operating Temp : -15°C~55°C/5°F~131°F

IR back channel for remote control of AV source

Supports DTS-HD/Dolby true -HD /LPCM 7.1 /Dolby- AC3 /DTS/DSD audio formats

Allows AWG24 HDMI cable length up to 5M to input and up to 5m from output without loss

Deep Color : 36bit

Housing : Metal

Dimensions : 105mm(L)x 76 mm(W)x 26mm(H)

Weight : 210g

Power Supply : DC 12V

INTRODUCTION

When use the product,please corresponding to the usage of the product.

This HDMI extender by Cat.5e/6 uses Cat.5e/6 cables to extend the HDTV display up to100M for 1080P. It is with HDMI connector and is capable

of supporting DVI equipment when used with an HDMI t o DVI adaptor. And if that weren’t enough, you can use a remote to control your adaptor.

device from over 100m away through an IR blaster and receiver pigtail .

It follows the standard of Extender, Cat.5e/6 cable can substitute HDMI cable to achieve long distance transmission.

Please Note: The IR control extender feature of this extender requires the following optional COAS IR accessories.
IR TX Transmitter cable probe (1 required for source device)

IR RX Receiver cable probe ( 1 required for IR control at display )

FEATURES

• HDCP 2.0 and DVI compliant
•Support full 3D pass-through
•Support high resolution up to 4K x 2K
•Super IR control system, IR transport channel can be forward or backward

100M extension with a Cat5e/6 over HDBase-T technology

Support POE

•Support CEC bypass

•External and internal EDID settings

No software or driver installation required

PACKAGE CONTENTS

•1 HDMI Transmitter unit, 1 HDMI Receiver unit
•1 12V DC power supply

•1 User Manual

•1 IR adaptor (optional )

INSTALLATION

•Connect HDMI input port on transmitter to the signal source equipment such as DVD player.

•Connect the CAT5e/6 output on the transmitter with CAT5 e/6 cables to the CAT5e/6 inputs on the receiver.

•Connect HDMI output port on receiver to HDMI displays.
•Plug the 12V DC power supply into the unit and connect the adaptor to AC outlet.

To use Bi-directional IR control function :

1, If you want to control source equipment at display end , connect IR blaster cable to the IR TX port on Transmitter for signal transmission .

Place the IR blaster in direct in direct line -of sight of the equipment to be controlled . Connect IR receiver cable to the IR RX port on Receiver for signal reception .Place the IR receiver indirect line -of -sight of remote .

2, If you want to control the display at the source end , connect IR blaster cable to the IR TX port on Receiver for signal transmission .

Place the IR Receiver indirect line-of -sight of remote .Connect IR receiver cable to the IR RX port on Transmitter for signal reception .

Place the IR receiver in direct line-of-sight of the equipment to be controlled .

P.S. Bi-directional IR , means , DVD player is in Room A , and TV set is in Room B . If you wanna control the DVD video in Room B , you no need moving to A Room , and you just need to use DVD remote to aim the IR receiver closed to TV set in B Room . Same to TV .

IR Receiver Range : 20 meter
IR Emitter Range : 6 meter
IR cable can be up to 300 meter
