1x8C 50M HD108CF

Update: 2018/2/6      View:
  • Brand:    COAS
  • Type:    HD108CF
  • Order Online
Introduction







      50M HDMI  over  Cat5e/6 Splitter extender

Model No .HD108CF


FEATURE

1HDMI input signal split to 8 outputs for 8-supplied receivers

Support 50m for HDMI signal


The receiver is 8 sets of Cat5e/6 ( single RJ45 socket  ) HDMI device


SPECIFICATION

HDMI version                                        4K x 2K

HDCP                                                   1.3

Bandwidth                                            6.75Gbps - 10.2Gbps

Output Resolution                                3840 x 2160@50/60, 480i — 1080P@ 50/60
                                                             1080P@24/50/60 , VGA -UXGA

Operating Temperature                        -15°C~55°C/5°F~131°F

Deep Color                                          deep color 24bit/36bit

Audio Format                                       PLCM /Dolby -AC3/DTS7.1 / DSD

Housing                                                Metal

Output cable distance                          <&= 5m
Intput cable distance                            <&= 5m
Dimension                                            105mm(L)x76mm(W)x26mm(H)

Weight                                                    g

Power Supply                                        DC 5V

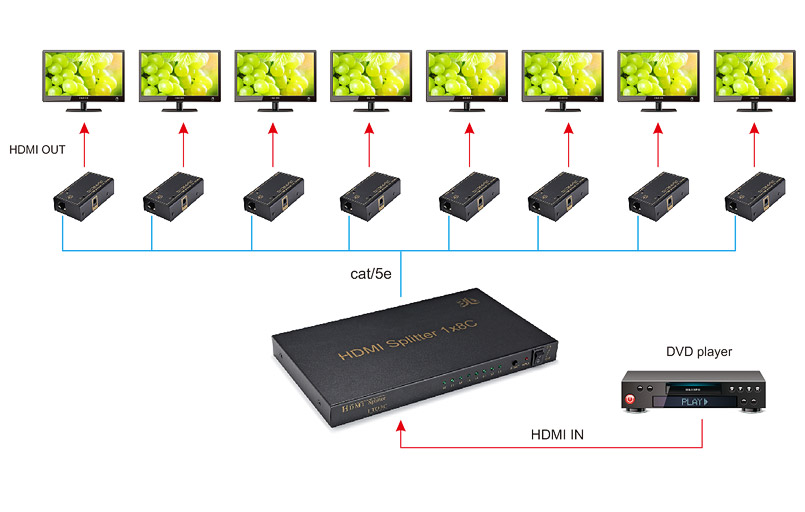

OPERATION :
1, Connect the signal source ( such as HD-DVD, PS3 , STB ) with HDMI input interfaces .
2, Connect the display devices ( such as HD-LCD , HD-DLP) with HDMI output interfaces .
3, Connect the EIA/TIA 568B one long Cat5e/6 cable to the sender output socket .
4, Connect the EIA/TIA 568B one long Cat5e/6 cables to the Receiver input socket .
5, Connect LCD with HDMI interface to Receiver output socket .

Package included :
1 x HDMI splitter over UTP
8 x 50m HDMI over 2 x Cat5e/6 extenders RECEIVERS with IR
1 x 5V / 3A DC power adapters
8 x 5V / 2A DC power adapters
1x user manual


Included in the system are an HDMI splitter, eight  receivers,  and one 5V/ 3A DC power supply and eight  5V/2A DC power supply adapters.

.50M transmission over Cat 6 at 4K x 2K

.UTP Cat 5e/6 to up to 8 compatible displays

.Compliant with HDMI 1.4, HDCP 1.3

.HDMI local loop out

.Operates for TMDS clock frequencies up to 165 MHz

.Supports resolutions up to 3840 x 2160 /36-bit

.Supports LPCM 7.1CH, Dolby True HD, and DTS-HD master audio

.CEC pass through

.Supports EDID control via EDID selector
