IR 1x8 HDMI splitter SP108IR-COAS ELECTRONIC

IR 1x8 HDMI splitter SP108IR

Update: 2018/2/6 View:

Brand: COAS
Type: SP108IR

Introduction

HDMI SPLITTER 1X8 with IR

Model No. SP108IR

1HDMI High Speed input signal split to 8 HDMI High Speed sink devices

HDCP2.0 compliant

3D and 4K*2K support

Bi-direcional IR control system

Receiver Range : 20 meter

Emitter Range : 6 meter

IR cable can be up to 300 meter

Input Port : 1 x HDMI (Female connector ),

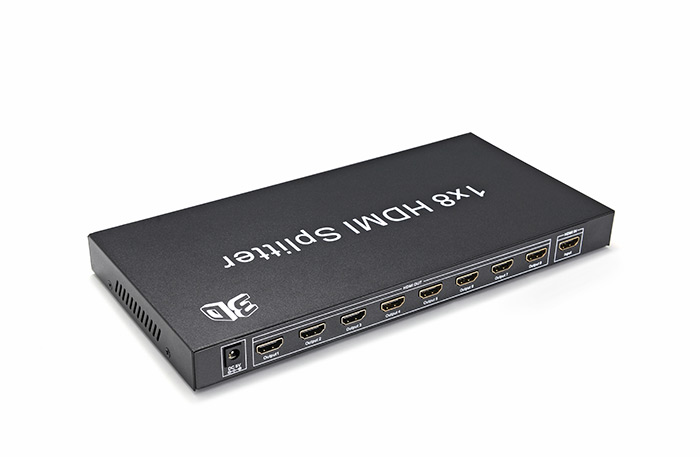

Out port : 8 x HDMI ( Female connector )

1 x IR channel

Input lead Max Length : for 4K — 7M , for 1080P — 20M

Output Lead Max Length : for 4K — 7M , for 1080P — 15M

Bandwidth : 10.2Gbps /340MHz

Output Resolution : 3840 x 2160@50/60, 480i — 1080P@ 50/60

1080P@24/50/60 , VGA -UXGA

Operating Temp : -15°C~55°C/5°F~131°F

Deep Color : 36bit

Housing : Metal

Dimensions : 276mm(L) x 135mm(W) x 25 mm(H)

Weight : 1020g

Power Supply Input : 100 -240V — 50/60 MHz ,0.3A max

Power Supply Output : DC 5V —— 2000mA

.Allows you to cascade 8 or more splitters

.Can be used to create a larger distribution of HDMI signals

.Supports HDMI specifications - (Deep color, HD lossless audio formats, and Lip Sync)

.Supports Dolby Digital, DTS-HD, and Dolby True HD audio formats

.Super IR control,IR transport channel can be forward or backward

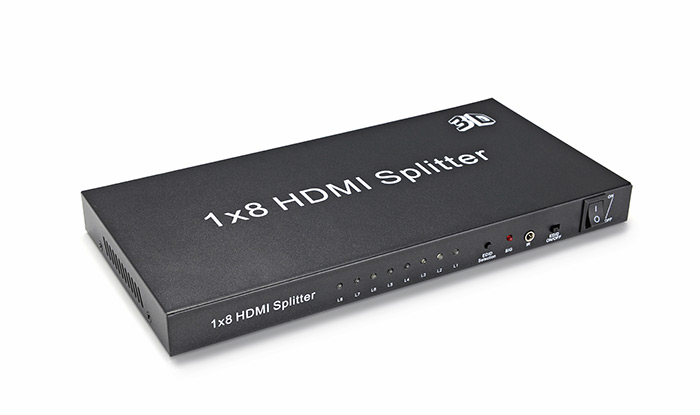

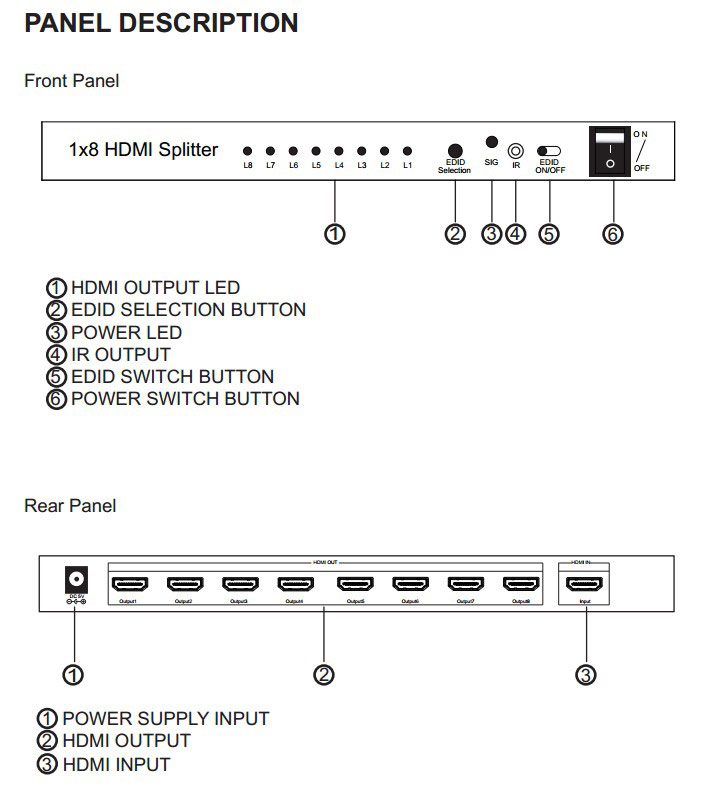

.Front panel LED indicators

.Gives an indication of the presence of input/output signals

.CEC pass through

.External and internal EDID settings

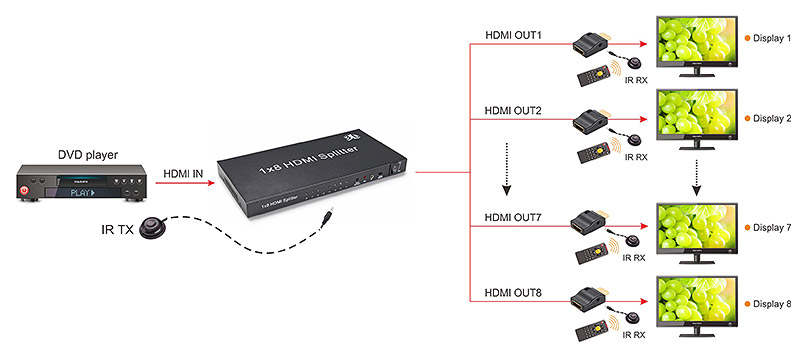

Source device IR control:

•Connect the IR port with a Transmitter TX cable included in the package if needed ) for IR signal transmission. Place the IR Blaster in direct line-of-sight of the equipment to be controlled.

•Connect a IR Receiver RX cable ( included in the package if needed ) at the HDMI input of the HD Display for IR signal reception.

HDMI IR Injector adaptor ( Model No. AD001 ) is needed for this connection. Make sure that the remote being used is in direct line-of-sight of the IR receiver.
