50M HDMI over Cat5e/6 Splitter extender with IR
Model No .HD108CR
FEATURE
1HDMI input signal split to 8 outputs for 8-supplied receivers
Support 50m for HDMI signal
The receiver is 8 sets of Cat5e/6 - RX ( single RJ45 socket with IR ) HDMI device
Bi-direcional coas IR control system
Receiver Range : 20 meter
Emitter Range : 6 meter
IR cable can be up to 300 meter
SPECIFICATION
HDMI version 4K x 2K
HDCP 1.3
Bandwidth 6.75Gbps - 10.2Gbps
Output Resolution 3840 x 2160@50/60, 480i — 1080P@ 50/60
1080P@24/50/60 , VGA -UXGA
Operating Temperature -15°C~55°C/5°F~131°F
Deep Color deep color 24bit/36bit
Audio Format PLCM /Dolby -AC3/DTS7.1 / DSD
Housing Metal
Output cable distance <&= 5m
Intput cable distance <&= 5m
Dimension 105mm(L)x76mm(W)x26mm(H)
Weight g
Power Supply DC 5V
OPERATION :

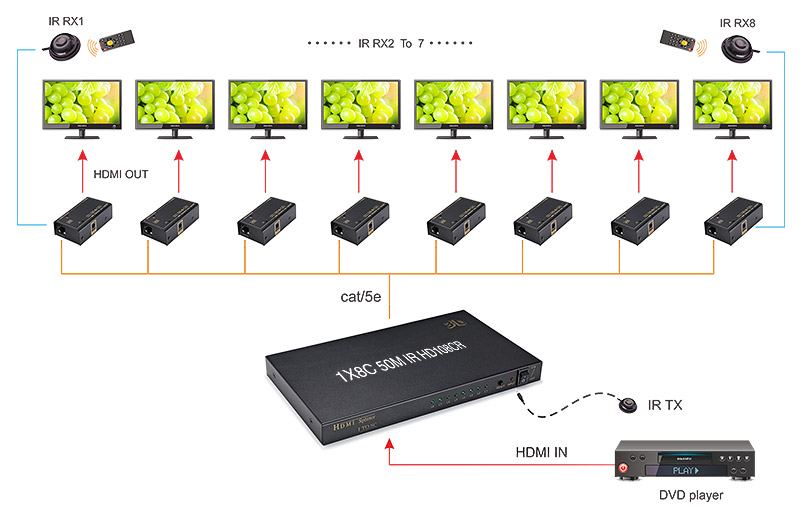

1, Connect the signal source ( such as HD-DVD, PS3 , STB ) with HDMI input interfaces .
2, Connect the display devices ( such as HD-LCD , HD-DLP) with HDMI output interfaces .
3, Connect the EIA/TIA 568B one long Cat5e/6 cable to the sender output socket .
4, Connect the EIA/TIA 568B one long Cat5e/6 cables to the Receiver input socket .
5, Connect LCD with HDMI interface to Receiver output socket .
Package included :
1 x HDMI splitter over UTP
8 x 50m HDMI over 2 x Cat5e/6 extenders RECEIVERS with IR
1 x 5V /3A DC power adapters
8 x 5V / 2A DC power adapters
1x user manual
1 x IR TX + 8 x IR RX if needed
Included in the system are an HDMI splitter, four receivers, one IR transmitters , and eight IR receivers, and five 1pc 5V/3A and 8pcs 5 V DC power supply adapters.
.50M transmission over Cat 6 at 4K x 2K
.UTP Cat 5e/6 to up to 8 compatible displays
. Compliant with HDMI 1.4, HDCP 1.3
. HDMI local loop out
. Operates for TMDS clock frequencies up to 165 MHz
. Supports resolutions up to 3840 x 2160 /36-bit
. Supports LPCM 7.1CH, Dolby True HD, and DTS-HD master audio.
. Supports EDID control via EDID selector
.CEC pass through
. Bi-directional IR control
