1 x 2 HDMI splitter 4K
Update: 2024/9/22 View:
- Brand: COAS
- Type: SP102S
Introduction
High quality , Excellent Compatibility HDMI splitter 1 In 2 Out , HDMI 2.0, HDCP 2.2/ HDCP2.3

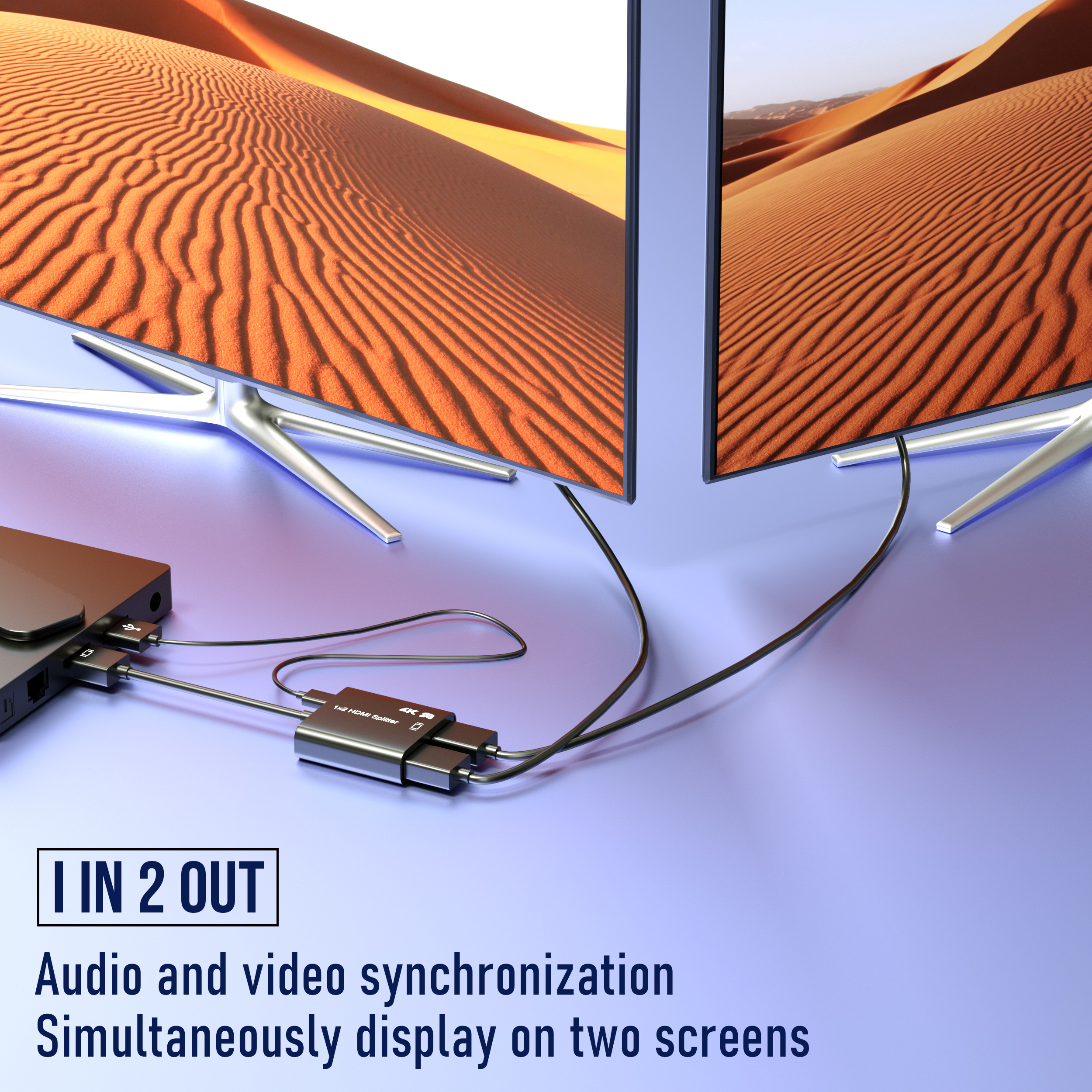

- This 4K@60Hz ( 2160x3840 /60 ) HDMI Splitter is a distribution Amplifier Splitter that distributes One HDMI input to Two identical outputs , Duplicate / Mirror the SAME Image .
- It ’s Compatible with All HDCP versions : HDCP 2.3, HDCP 2.2, HDCP 2.1 bypass . RGB 4:4:4 .
- The Built-in EDID makes It automatically match the lower resolution of the 2 output displays of different sizes and resolutions , for example ,If you're sending a 4k signal to a 4K TV and a 1080P TV, this splitter will automatically downgrade and send a compatible 1080P HDMI signal to the said 2 TVs .
SPECIFICATION
| Input Port : | 1 x HDMI ( Female Connector ) |
| Output Port : | 2x HDMI ( Female Connector ) |
| Bandwidth : | 18Gbps ( HDMI2.0 ) |
| Output Resolution : | Full 3D / 480i~1080P@50/60, 1080P@50/60, 2160@24/50/60 ( 4K x 2K ), VGA~UXGA. 4:4:4 |
| Audio Format : | Support All Audio formats like DTS-HD/DTS7.1/DSD/Dolby-True-HD/LPCM/AC3 |
| Deep Color : | 24 bit /36 bit |
| HDCP Bypass : | HDCP 2.3/ HDCP 2.2 / HDCP 2.1 |
| EDID : | Auto Build-in EDID , No need setting |
| IR Remote control | Support IR Repeater |
| Case : | ABS |
| Dimension : | 180mm(L) x 45mm (W) x 15MM (H) |
| Operating Temperature : | -15 ℃~55 ℃/5F~ 131F |
| Power Supply : | micro USB cabe for Power . Extra power supply provides higher stability of HDMI signal transmission when your input source does not supply enough power . |
| Weight : | 190g |
