1x16 HDMI splitter SP1016-COAS ELECTRONIC

Update: 2018/2/6 View:

Introduction

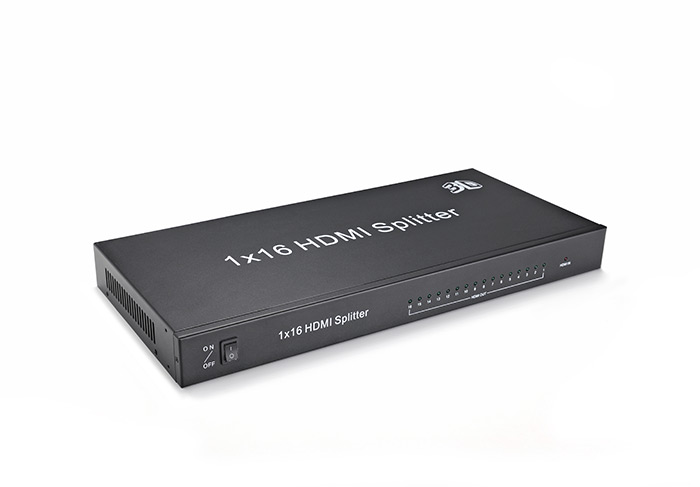

HDMI Splitter 1x16

Model No. SP1016

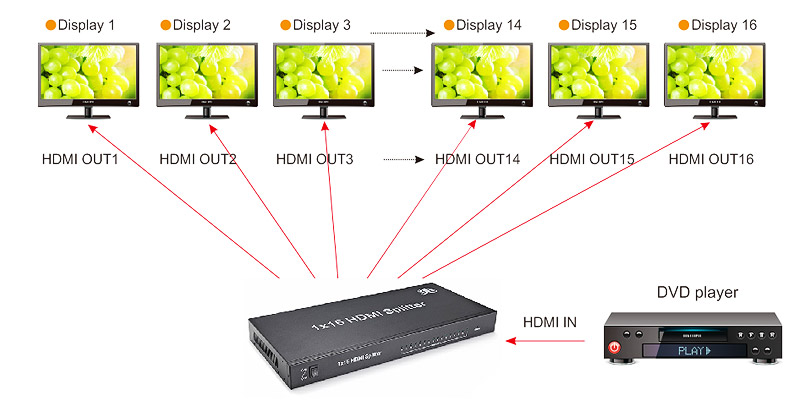

1HDMI High Speed input signal split to 8 HDMI High Speed sink devices

HDCP2.0 compliant

3D and 4K*2K support

Input Port : 1x HDMI (Female connector )

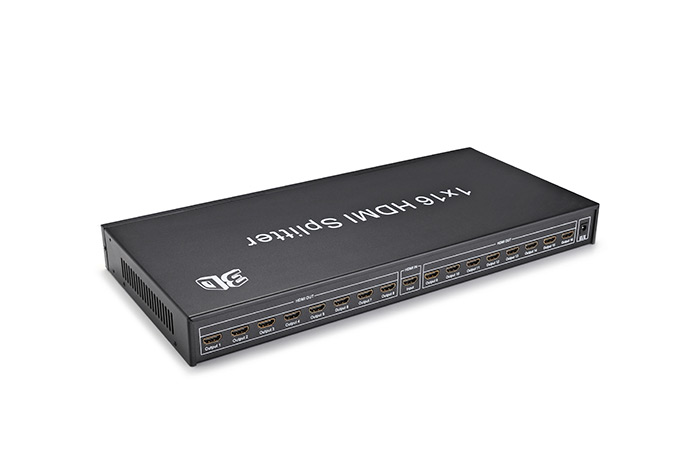

Out port : 16 x HDMI ( Female connector )

Input lead Max Length : for 4K — 7M , for 1080P — 20M

Output Lead Max Length : for 4K — 7M , for 1080P — 15M

Bandwidth : 10.2Gbps / 340MHz

Output Resolution : 3840 x 2160@50/60, 480i — 1080P@ 50/60

1080P@24/50/60 , VGA -UXGA

Operating Temp : -15°C~55°C/5°F~131°F

Deep Color : 36bit

Housing : Metal

Dimensions : 437mm ( L ) x 204MM (W ) x 46mm(H)

Weight :

Power Supply Input : 100 -240V — 50/60 MHz ,0.3A max

Power Supply Output : DC 5V —— 3000mA

.Allows you to cascade 16 or more splitters

.Can be used to create a larger distribution of HDMI signals

.Supports HDMI specifications - (Deep color, HD lossless audio formats, and Lip Sync)

.Supports Dolby Digital, DTS-HD, and Dolby True HD audio formats

.Front panel LED indicators

.Gives an indication of the presence of input/output signals

.CEC pass through

.External and internal EDID settings
