IR 1x8 HDMI splitter SP108IR
- Brand: COAS
- Type:

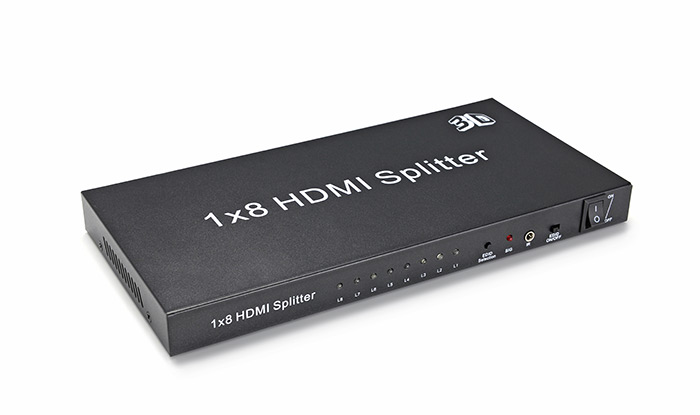

HDMI SPLITTER 1X8 with IR
Model No. SP108IR
1HDMI High Speed input signal split to 8 HDMI High Speed sink devices
HDCP2.0 compliant
3D and 4K*2K support
IR cable can be up to 300 meter
Input Port : 1 x HDMI (Female connector ),
Out port : 8 x HDMI ( Female connector )
.Can be used to create a larger distribution of HDMI signals
.Supports HDMI specifications - (Deep color, HD lossless audio formats, and Lip Sync)
.Supports Dolby Digital, DTS-HD, and Dolby True HD audio formats
.Super IR control,IR transport channel can be forward or backward
.Front panel LED indicators
.Gives an indication of the presence of input/output signals
.CEC pass through
.External and internal EDID settings

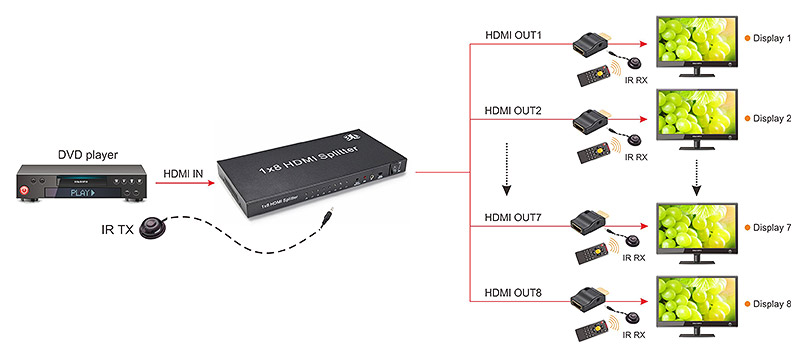

Source device IR control:
•Connect the IR port with a Transmitter TX cable included in the package if needed ) for IR signal transmission. Place the IR Blaster in direct line-of-sight of the equipment to be controlled.
•Connect a IR Receiver RX cable ( included in the package if needed ) at the HDMI input of the HD Display for IR signal reception.
HDMI IR Injector adaptor ( Model No. AD001 ) is needed for this connection. Make sure that the remote being used is in direct line-of-sight of the IR receiver.
