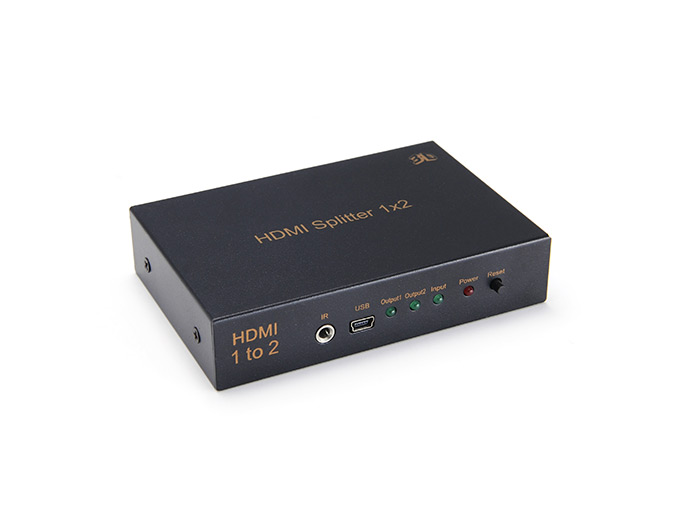

1x2 HDMI splitter SP102B

Update: 2018/2/6      View:
  • Brand:    COAS
  • Type:    SP102B
  • Order Online
Introduction





       HDMI Splitter 1x2 with IR

Model No. SP102B

1HDMI High Speed input signal split to 2 HDMI High Speed sink devices

HDCP2.0 compliant

3D and 4K*2K support

Bi-direcional IR control system
Receiver Range : 20 meter
Emitter Range :    6 meter

IR cable can be up to 300 meter


Input Port :                                  1 x HDMI (Female connector ), 1 x USB (micro Female for power )

Out  port :                               2 x HDMI ( Female connector )
                                              1 x IR channel

Input lead Max Length :            for 4K — 7M , for 1080P — 20M
Output Lead Max Length :          for 4K — 7M , for 1080P — 15M
Bandwidth :                             10.2Gbps / 340MHz
Output Resolution :                   3840 x 2160@50/60, 480i — 1080P@ 50/60
                                               1080P@24/50/60 , VGA -UXGA
Operating Temp :                      -15°C~55°C/5°F~131°F
Deep Color :                             36bit
Housing :                                 Metal
Dimensions :                            105mm(L) x 76mm(W) x 26 mm(H)
Weight :                                   185g
Power Supply Input :                 100 -240V — 50/60 MHz ,0.3A max
Power Supply Output :               DC 5V —— 2000mA

.Allows you to cascade 2 or more splitters

.Can be used to create a larger distribution of HDMI signals.

.Supports HDMI specifications - (Deep color, HD lossless audio formats, and Lip Sync)

.Supports Dolby Digital, DTS-HD, and Dolby True HD audio formats

.Super IR control,IR transport channel can be forward or backward

.Front panel LED indicators

.Gives an indication of the presence of input/output signals

.CEC pass through


.External and internal EDID settings



Source device IR control:


•Connect the IR port with a Transmitter TX cable included in the package if needed ) for IR signal transmission. Place the IR Blaster in direct line-of-sight of the equipment to be controlled.



•Connect a IR Receiver RX cable ( included in the package if needed ) at the HDMI input of the HD Display for IR signal reception.


HDMI IR Injector adaptor ( Model No. AD001 ) is needed for this connection. Make sure that the remote being used is in direct line-of-sight of the IR receiver
