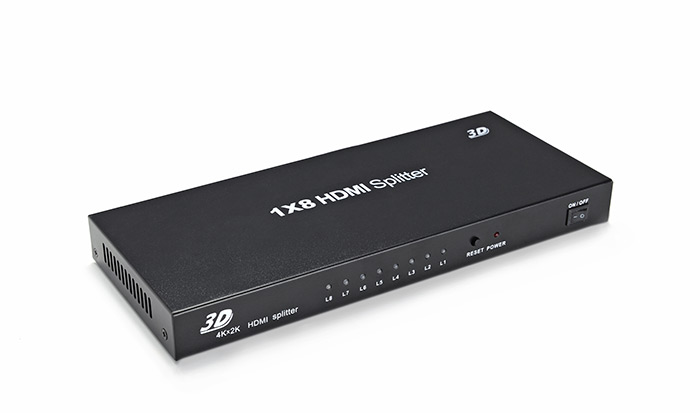

mini 1x8 HDMI splitter SP108M
Update: 2024/12/2 View:
- Brand: COAS
- Type: SP108M
Introduction
HDMI Splitter 1x8
Model No. SP108M
1HDMI High Speed input signal split to 8 HDMI High Speed sink devices
HDCP2.0 compliant
3D and 4K*2K support
Input Port : 1x HDMI (Female connector )
Out port : 8 x HDMI ( Female connector )
Input lead Max Length : for 4K — 7M , for 1080P — 20M
Output Lead Max Length : for 4K — 7M , for 1080P — 15M
Bandwidth : 10.2Gbps /340MHz
Output Resolution : 3840 x 2160@50/60, 480i — 1080P@ 50/60
1080P@24/50/60 , VGA -UXGA
Operating Temp : -15°C~55°C/5°F~131°F
Deep Color : 36bit
Housing : Metal
Dimensions : 105mm ( L ) x 76MM (W ) x 26mm(H)
Weight : 1020g
Power Supply Input : 100 -240V — 50/60 MHz ,0.3A max
Power Supply Output : DC 5V —— 2000mA
.Allows you to cascade 8 or more splitters
.Can be used to create a larger distribution of HDMI signals
.Supports HDMI specifications - (Deep color, HD lossless audio formats, and Lip Sync)
.Supports Dolby Digital, DTS-HD, and Dolby True HD audio formats
.Front panel LED indicators
.Gives an indication of the presence of input/output signals
.CEC pass through
.External and internal EDID settings
