50M HDMI over Cat5e/6 HDET50DI
- Brand: COAS
- Type: HDET50DI
HDMI Extender 50m extension
Transmits full HD 1080P signal over two network cables as far as 50M
IR back channel capability allows control of the AV source from the display’s from the display’s location

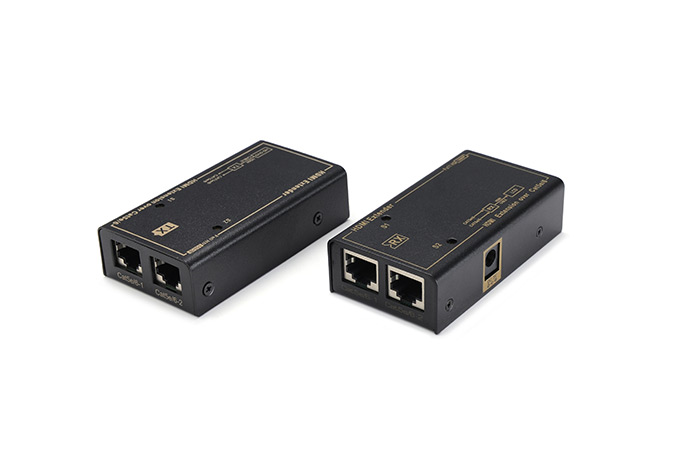

Receiver : 2 x RJ45 sockets to 1 HDMI output + IR channel
IR back channel for remote control of AV source
INTRODUCTION
When use the product,please corresponding to the usage of the product.
This HDMI extender by Cat.5e/6 uses Cat.5e/6 cables to extend the HDTV display up to 50M for 1080P. It is with HDMI connector and is capable
of supporting DVI equipment when used with an HDMI t o DVI adaptor. And if that weren’t enough, you can use a remote to control your adaptor.
device from over 50m away through an IR blaster and receiver pigtail .
It follows the standard of Extender, Cat.5e/6 cable can substitute HDMI cable to achieve long distance transmission.
Please Note: The IR control extender feature of this extender requires the following optional COAS IR accessories.
IR TX Transmitter cable probe (1 required for source device)
IR RX Receiver cable probe ( 1 required for IR control at display )
P.S. Bi-directional IR , means , DVD player is in Room A , and TV set is in Room B . If you wanna control the DVD video in Room B , you no need moving to A Room , and you just need to use DVD remote to aim the IR receiver closed to TV set in B Room . Same to TV .
FEATURES
• HDCP 1.3 compliant
•Support full 3D pass-through
•Support high resolution up to 1080P
•Super IR control system, IR transport channel can be forward or backward
•Support CEC bypass
•External and internal EDID settings
PACKAGE CONTENTS
•1 HDMI Transmitter unit, 1 HDMI Receiver unit
•1 5V DC power supply(optional,50M over double Cat5e/6)
•1 User Manual
•1 IR adaptor (optional )

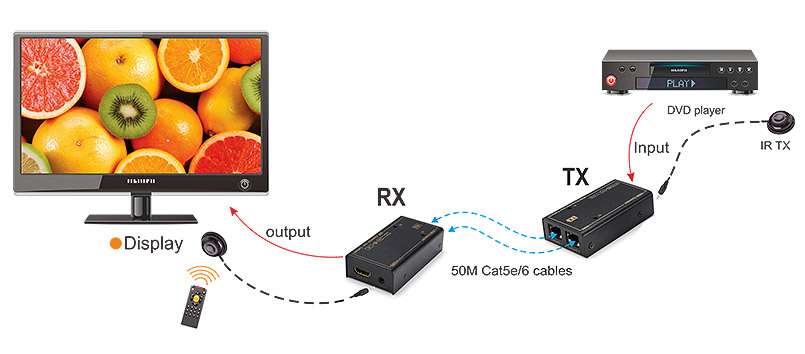

INSTALLATION
•Connect HDMI input port on transmitter to the signal source equipment such as DVD player.
•Connect the CAT5e/6 output on the transmitter with CAT5 e/6 cables to the CAT5e/6 inputs on the receiver.
•Connect HDMI output port on receiver to HDMI displays.
•Plug the 5VDC power supply into the unit and connect the adaptor to AC outlet.
