3x1 HDMI Switch SW301C
- Brand: COAS
- Type: SW301C

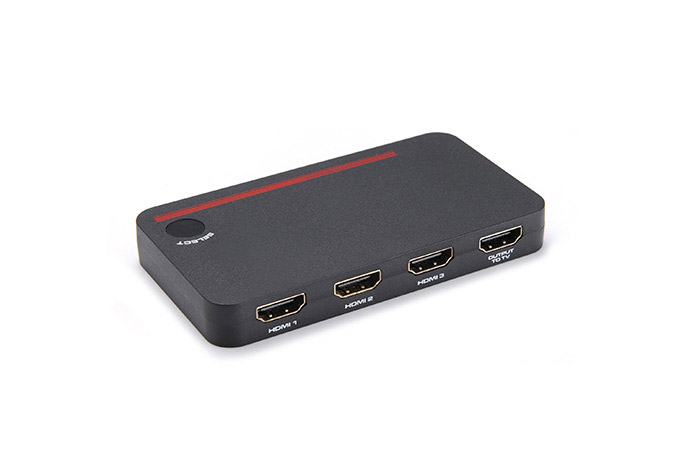

HDMI Switch 3x1
Model No. SW301C
3 HDTV HDMI devices to be switched easily into one HDTV HDMI compatible monitor or projector.
Full HD 1080P/120Hz/60Hz
3D and 4K*2K support
Support X.V. Colour
Supports DTS/Dolby/DTS-HD/Dolby True HD/LPCM7.1/AC3
Support HDMI2.0, HDCP 2.2 compatible
Input Port : 3xHDMI(Female connector), 1xUSB
Output Port : 1xHDMI(Female connector),
Input lead Max Length : for 4K — 7M , for 1080P — 20M
PACKAGE CONTENTS
•1 x HDMI switch unit
•1 x Remote
•1 x 1m USB A to micro cable
•1 x User Manual
FEATURES
• Provides 3 HDMI inputs for easy selection and connection of multiple devices while using only a single HDMI port on your TV.
• Universal Design, Compatible with all devices that utilize HDMI for Video /Audio Output , and TV’s that USE HDMI inputs .
• Includes compact IR Remote , for easy selection of device you wish to use .

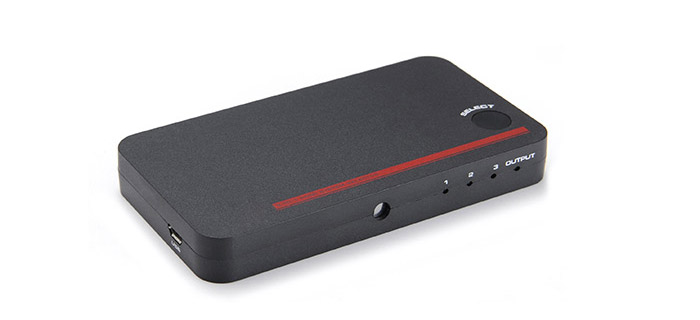

• LED indicators show clearly that Line/ Device selected .
• Includes optional Micro USB power cable for older generation devices that may not have sufficient power from HDMI ports
•Support CEC bypass
•External and internal EDID settings
INSTALLATION
•Connect HDMI input ports to the HD signal source equipments such as DVD player, Blue-ray player, Set-top box etc.
•Connect HDMI output port to the HDMI display.
•You can control the device using the supplied Remote by pointing to the built-in IR sensor.
•In case your HDMI device could not provide sufficient power, you can use the supplied USB cable and connect o your existing device for getting power to the unit.
