1x2 IR Hub
- Brand: COAS
- Type: IR102

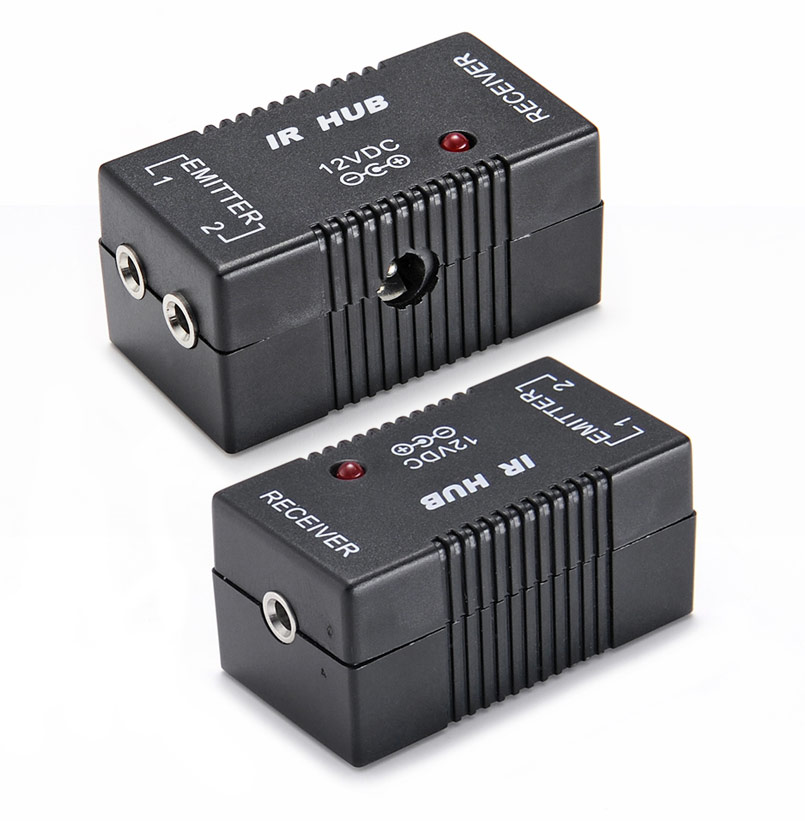

1 x 2 IR Hub
Model No. IR102
This Compact Type IR Repeater connects IR Block , IR Receiver , IR Emitter and Power Supply together to interface the IR system to the audio /video components .
COMPACT TYPE IR BLOCK
Features
1. Two emitter output connections .Allows IR remote control of up to 4 Devices even behind closed cabinet doors.
2. Power receptacle with LED indicator .
3. Three conductor receptacle for interfacing with many brands of freestanding IR receivers .
4.12VDC powered
5.IR Confirmation LED.
6.Power LED.
7.Status Confirmation LED.
8.Quick Mount.

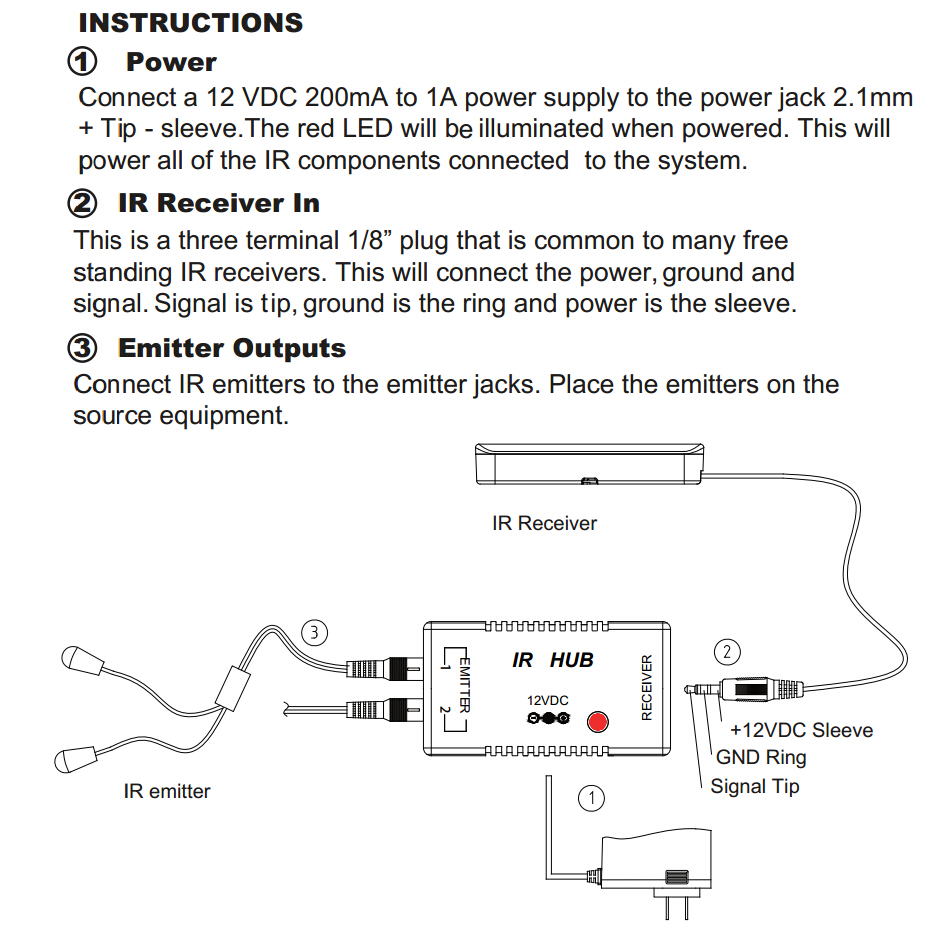

Specifications
The IR102 Includes:
1xDistribution Block,1xSurface Mount Receiver, 2xIR Emitter (optional ), 1x12VDC, 200ma power supply, 2xMounting Screws.
6 Ports.1/8’’(3.5mm) mono IR Emitter outputs
1 Detachable,4-conductor,IR Receiver In connector
2 1/8’’(3.5mm Stereo Jack) IR Receiver Input
Dimensions:IR Receiver:
Dimensions:Distribution Block 82.5mm x 47mm x 25.4mm
Block Weight :
DUAL BAND MINI STICK INFRARED RECEIVER
Features
1. CFL friendly-allows installations in areas with compact fluorescent lighting. Works in most lighting environments.
2. Blue IR confirmation LED.
3. Wide band IR receives IR from many types of remotes.
4. Self-adhesive tape for quick and easy fixing on any flat surface.
5. 3 meters cable with 3.5mm stereo mini-plug.

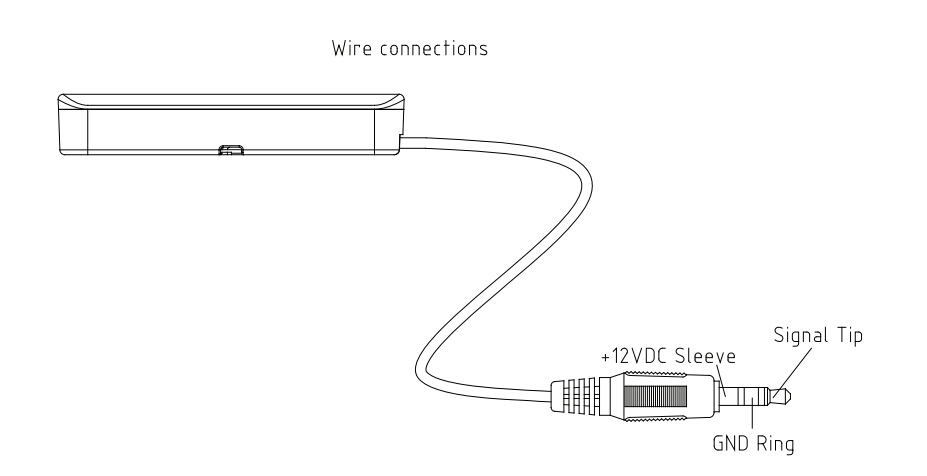

Specifications
Receive Frequency Range...........................................36 KHz to 58 KHz
Transmit Frequencies...................................................38 KHz & 56 KHz
Range………………………………………………………20M. @ 38KHz
......................................................................................... 6M. @ 56KHz
Power................................................................................12VDC,200mA
Dimensions……………………………………………………..R 20mm
Cord Length.................................................................................10ft(3m)
Connector Type...............................................1/8”(3.5mm)TRS mini plug
Weight.................................................................................................g

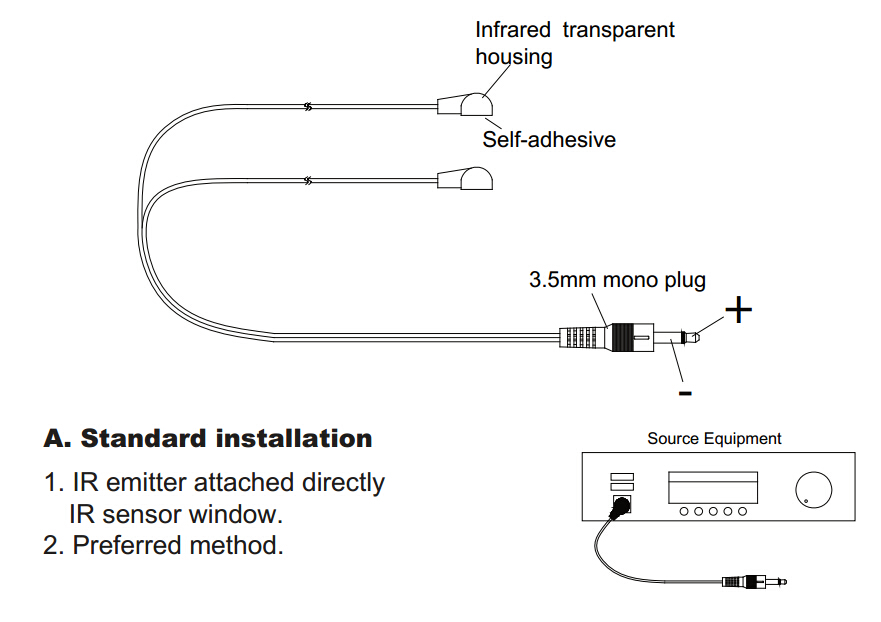

A. Standard installation
1. IR emitter attached directly to IR sensor window.
2. More reliable activated.
B. Attach emitter at inside of shelf
1. Attach emitter on above or below of the IR sensor.
2, Less reliable activated.
-
Attach emitter on door,round shape facing the IR sensor.
-
Less reliable activated.
