slim 1x2 HDMI Splitter SP102S-COAS ELECTRONIC

slim 1x2 HDMI Splitter SP102S

Update: 2018/2/6 View:

Brand: COAS
Type: SP102S

Introduction

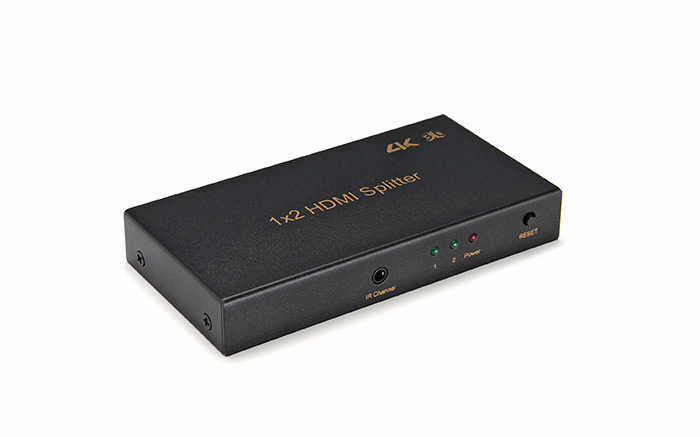

super slim HDMI Splitter 1x2 with IR

Model No. SP102S

1HDMI High Speed input signal split to 2 HDMI High Speed sink devices

HDCP2.0 compliant

3D and 4K*2K support

Bi-direcional IR control system

Receiver Range : 20 meter

Emitter Range : 6 meter

IR cable can be up to 300 meter

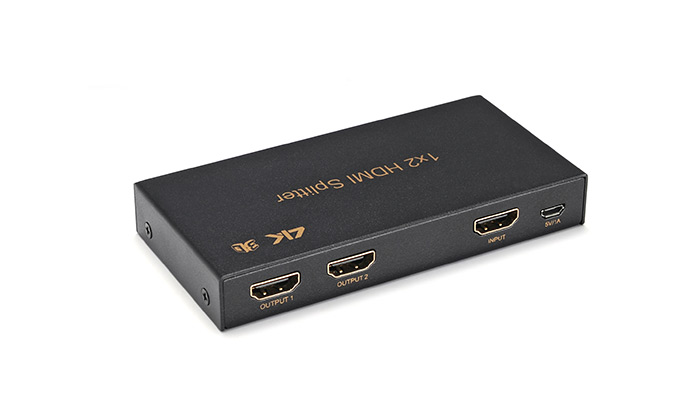

Input Port : 1 x HDMI (Female connector ), 1 x USB (micro Female for power )

Out port : 2 x HDMI ( Female connector )

1 x IR channel

Input lead Max Length : for 4K — 7M , for 1080P — 20M

Output Lead Max Length : for 4K — 7M , for 1080P — 15M

Bandwidth : 10.2Gbps / 340MHz

Output Resolution : 3840 x 2160@50/60, 480i — 1080P@ 50/60

1080P@24/50/60 , VGA -UXGA

Operating Temp : -15°C~55°C/5°F~131°F

Deep Color : 36bit

Housing : Metal

Dimensions : 120mm(L) x 60mm(W) x 17mm(H)

Weight : g

Power Supply Input : 100 -240V — 50/60 MHz ,0.3A max

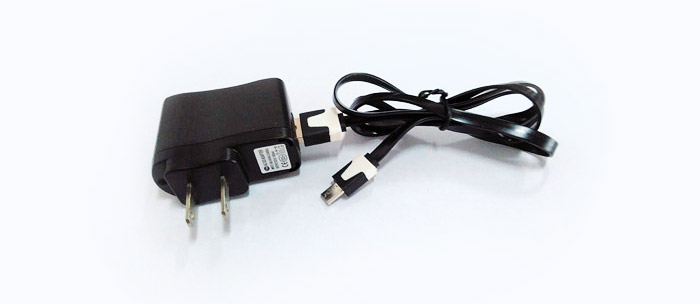

Power Supply Output : 5V/1A power adapter with USB cable 1m

.Allows you to cascade 2 or more splitters

.Can be used to create a larger distribution of HDMI signals.

Supports HDMI specifications - (Deep color, HD lossless audio formats, and Lip Sync)

.Supports Dolby Digital, DTS-HD, and Dolby True HD audio formats

.Super IR control,IR transport channel can be forward or backward

.Front panel LED indicators

.Gives an indication of the presence of input/output signals

.CEC pass through

.External and internal EDID settings

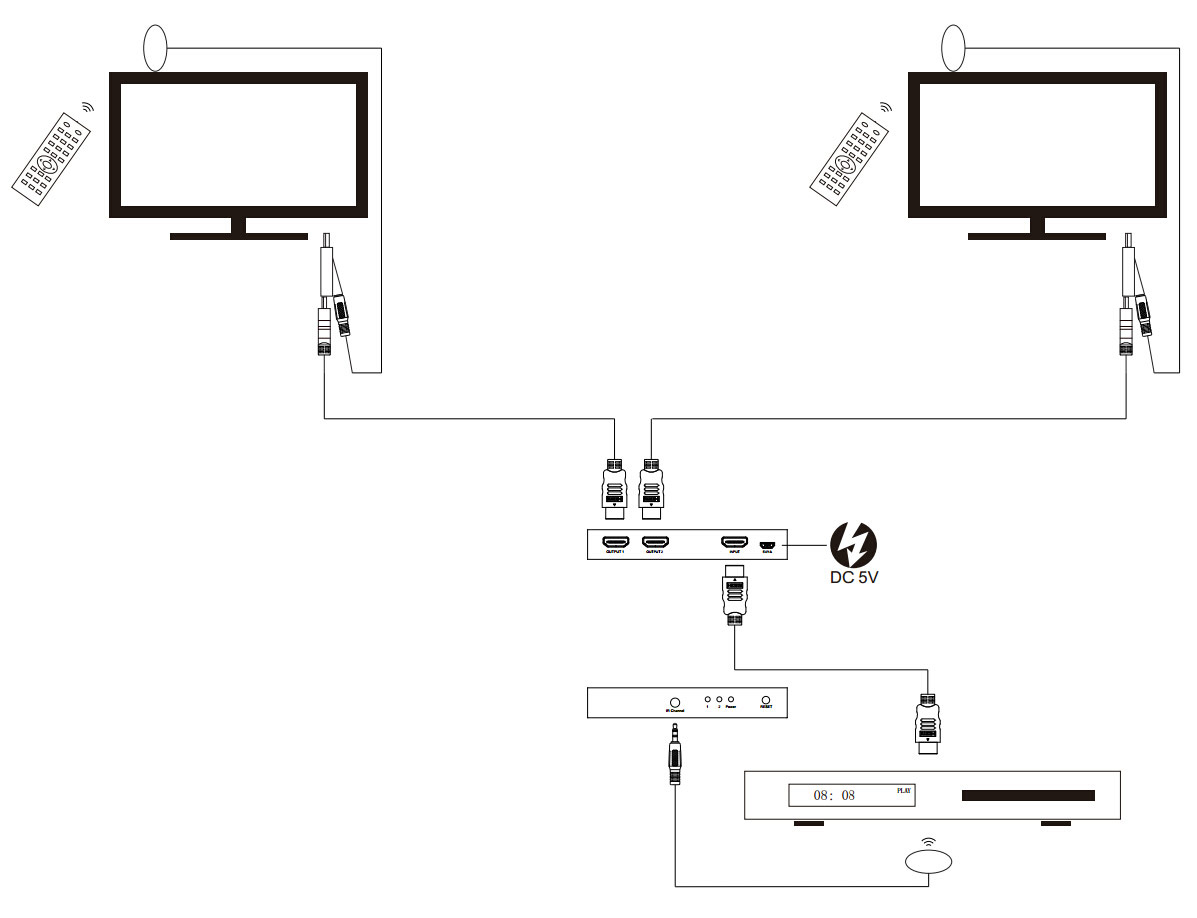

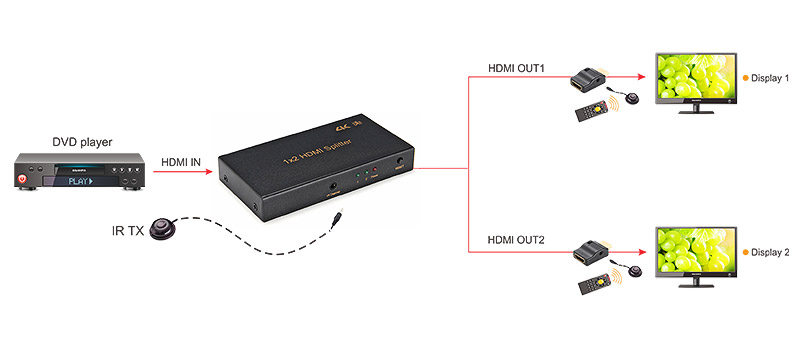

Source device IR control:

•Connect the IR port with a Transmitter TX cable included in the package if needed ) for IR signal transmission. Place the IR Blaster in direct line-of-sight of the equipment to be controlled.

•Connect a IR Receiver RX cable ( included in the package if needed ) at the HDMI input of the HD Display for IR signal reception.

HDMI IR Injector adaptor ( Model No. AD001 ) is needed for this connection. Make sure that the remote being used is in direct line-of-sight of the IR receiver.
