1x2C 50M HD102CF-COAS ELECTRONIC

1x2C 50M HD102CF

Update: 2024/12/2 View:

Brand: COAS
Type: HD102CF

Introduction

50M HDMI over Cat5e/6 splitter extender

Model No .HD102CF

FEATURE

1HDMI input signal split to 2 outputs for 2-supplied receivers

Support 50m for HDMI signal

The receiver is 2 sets of Cat5e/6 - RX ( two RJ45 sockets with IR ) HDMI device

Bi-direcional coas IR control system

Receiver Range : 20 meter

Emitter Range : 6 meter

IR cable can be up to 300 meter

SPECIFICATION

HDMI version 4K x 2K

HDCP 1.3

Bandwidth 6.75Gbps - 10.2Gbps

Output Resolution 3840 x 2160@50/60, 480i — 1080P@ 50/60

1080P@24/50/60 , VGA -UXGA

Operating Temperature -15°C~55°C/5°F~131°F

Deep Color deep color 24bit/36bit

Audio Format PLCM /Dolby -AC3/DTS7.1 / DSD

Housing Metal

Output cable distance <&= 5m

Intput cable distance <&= 5m

Dimension 105mm(L)x76mm(W)x26mm(H)

Weight g

Power Supply DC 5V

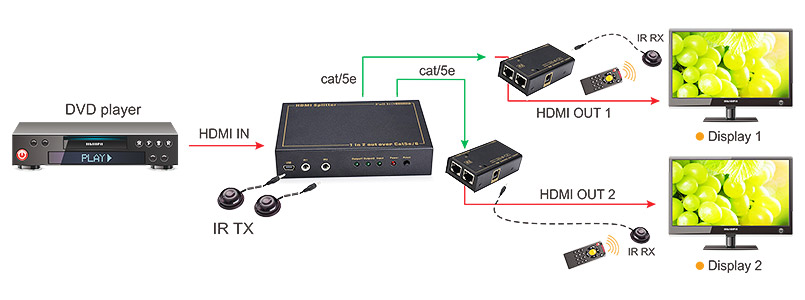

OPERATION :

1, Connect the signal source ( such as HD-DVD, PS3 , STB ) with HDMI input interfaces .

2, Connect the display devices ( such as HD-LCD , HD-DLP) with HDMI output interfaces .

3, Connect the EIA/TIA 568B one long Cat5e/6 cable to the sender output socket .

4, Connect the EIA/TIA 568B one long Cat5e/6 cables to the Receiver input socket .

5, Connect LCD with HDMI interface to Receiver output socket .

Package included :

1 x HDMI splitter over UTP

2 x 50m HDMI over 2 x Cat5e/6 extenders RECEIVERS with IR

3 x 5V / 2A DC power adapters

1x user manual

2x IR TX + 2 IR RX if needed

Included in the system are an HDMI splitter, two receivers, two IR transmitters & receivers, and three 5 V DC power supply adapters.

.50M transmission over Cat 6 at 4K x 2K

.UTP Cat 5e/6 to up to 2 compatible displays.

.Compliant with HDMI 1.4, HDCP 1.3.

.HDMI local loop out

.Operates for TMDS clock frequencies up to 165 MHzSupports resolutions up to 3840 x 2160 /36-bit.

.Supports LPCM 7.1CH, Dolby True HD, and DTS-HD master audio.

.Supports EDID control via EDID selector

.CEC pass through

.Bi-directional IR control
