Model No .HD104CF

FEATURE

1HDMI input signal split to 4 outputs for 4-supplied receivers

Support 50m for HDMI signal
The receiver is 4 sets of Cat5e/6 - RX  ( two RJ45 sockets with IR ) HDMI device

Bi-direcional  coas IR control system
Receiver Range : 20 meter
Emitter Range :    6 meter
IR cable can be up to 300 meter

SPECIFICATION
HDMI version                                        4K x 2K
HDCP                                                    1.3
Bandwidth                                             6.75Gbps - 10.2Gbps
Output Resolution                                 3840 x 2160@50/60, 480i — 1080P@ 50/60
                                                          1080P@24/50/60 , VGA -UXGA
Operating Temperature                          -15°C~55°C/5°F~131°F

Deep Color                                           deep color 24bit/36bit
Audio Format                                        PLCM /Dolby -AC3/DTS7.1 / DSD
Housing                                                Metal
Output cable distance                            <&= 5m
Intput cable distance                             <&= 5m
Dimension                                            105mm(L)x76mm(W)x26mm(H)
Weight                                                  g
Power Supply                                         DC 5V


OPERATION :
1, Connect the signal source ( such as HD-DVD, PS3 , STB ) with HDMI input interfaces .
2, Connect the display devices ( such as HD-LCD , HD-DLP) with HDMI output interfaces .
3, Connect the EIA/TIA 568B one long Cat5e/6 cable to the sender output socket .
4, Connect the EIA/TIA 568B one long Cat5e/6 cables to the Receiver input socket .
5, Connect LCD with HDMI interface to Receiver output socket .


Package included :

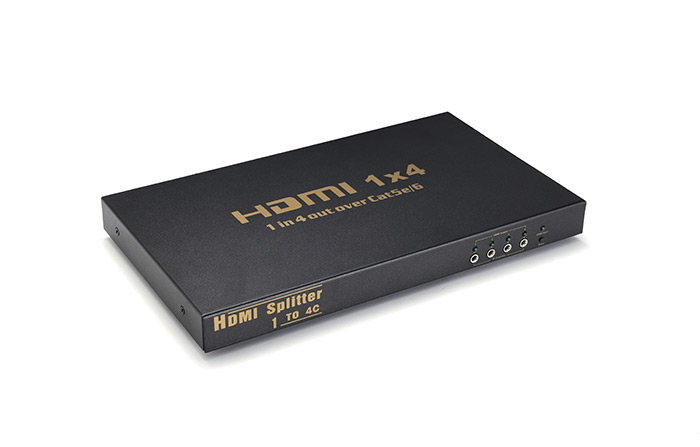

1 x HDMI splitter over UTP
4 x 50m HDMI over 2 x Cat5e/6 extenders RECEIVERS with IR
5 x 5V / 2A DC power adapters
1x user manual
4 x IR TX + 4 x IR RX if needed

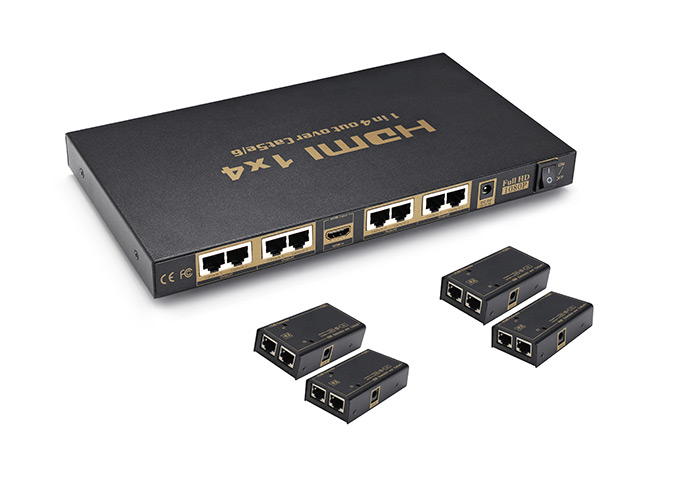

Included in the system are an HDMI splitter, four receivers, four IR transmitters & receivers, and five 5 V DC power supply adapters.


50M transmission over Cat 6 at 4K x 2K
UTP Cat 5e/6 to up to 4 compatible displays
Compliant with HDMI 1.4, HDCP 1.3
HDMI local loop out
Operates for TMDS clock frequencies up to 165 MHz
Supports resolutions up to 3840 x 2160 /36-bit
Supports LPCM 7.1CH, Dolby True HD, and DTS-HD master audio

CEC pass through

Supports EDID control via EDID selector
Bi-directional IR control
